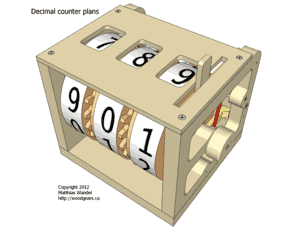

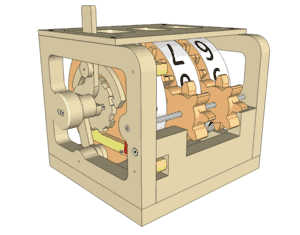

Counting machine plans preview

Copyright 2012 Matthias Wandel


1:1 drawings

These drawings can be printed 1:1 to use as cutting templates to cut the parts out on a scrollsaw or bandsaw.

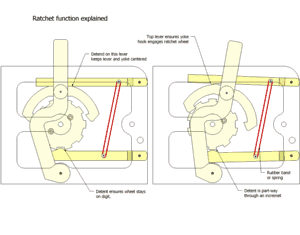

Gears and ratchet

Enclosure


Building instructions

The plans also include extensive building instructions, with many photographs illustrating the steps of building and tweaking the counter mechanism.
All the photographs (in the plans) can be enlarged by clicking on them.

Back to the plans
