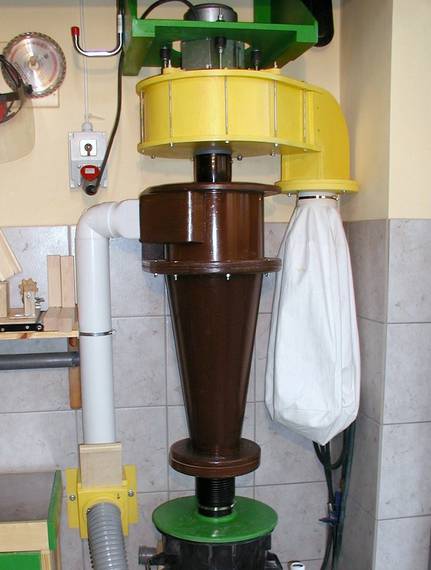

Ryszard's dust collector build part 1: The cyclone


Cyclone dimensions:
Top (cylindrical) section: 300 mm diameter, 235 mm high
Outlet: 110 mm diameter, protruding 208 mm from top
Cone: 576 mm high, 145 mm at bottom. Connection to collection bucket: 115 mm diameter.
Total height of cyclone: 897 mm.

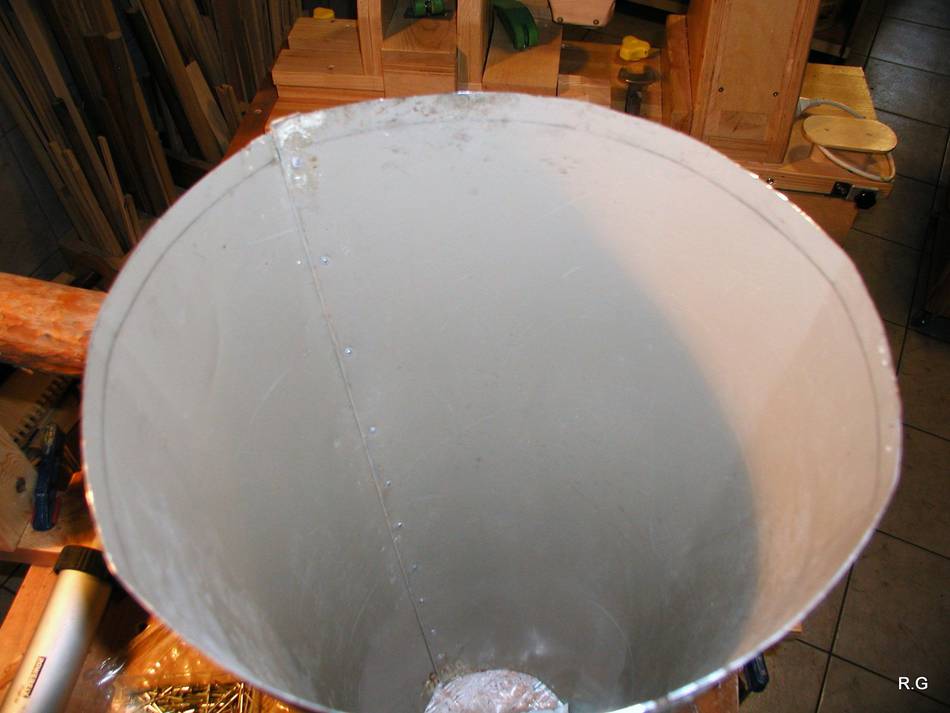

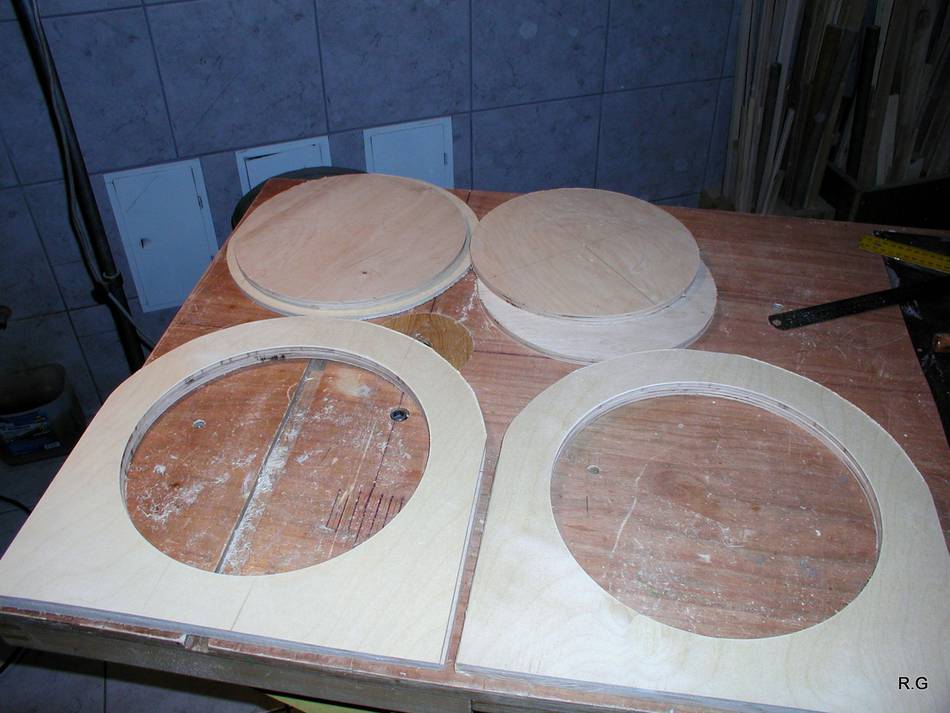

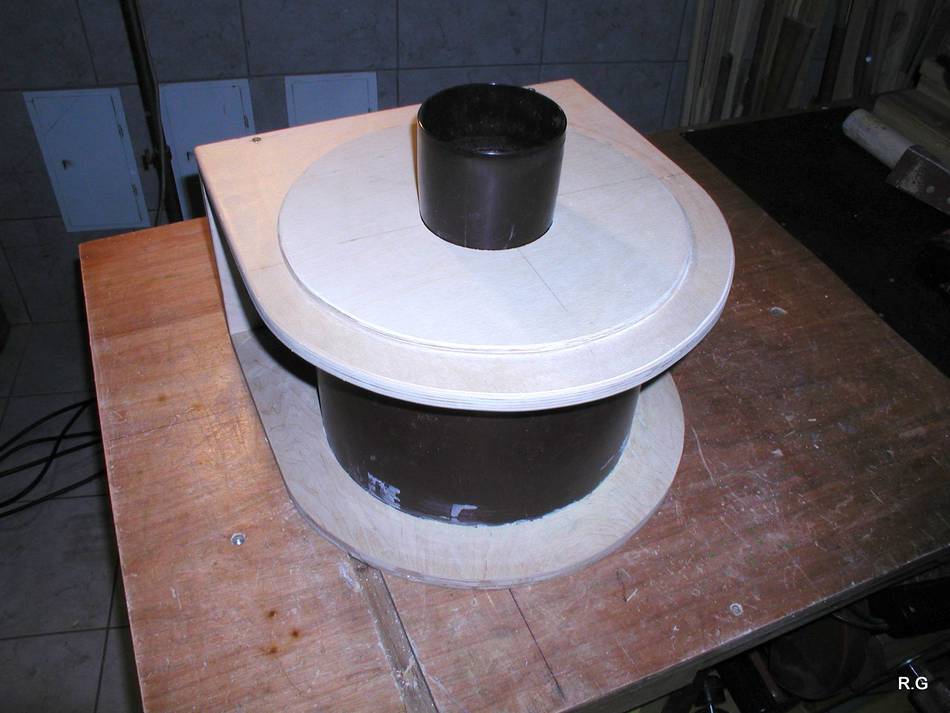

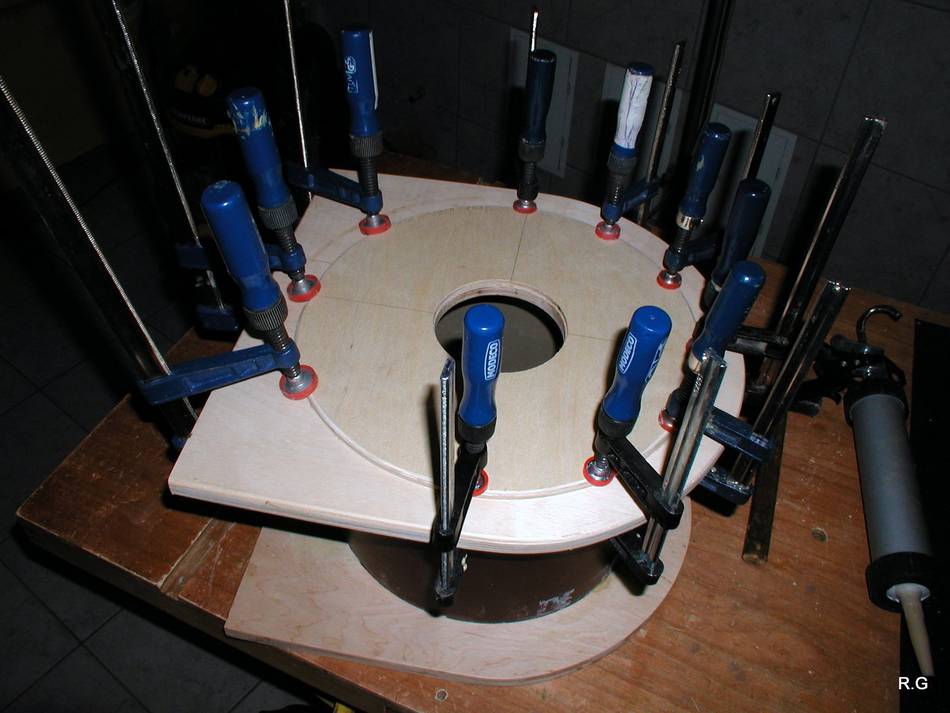

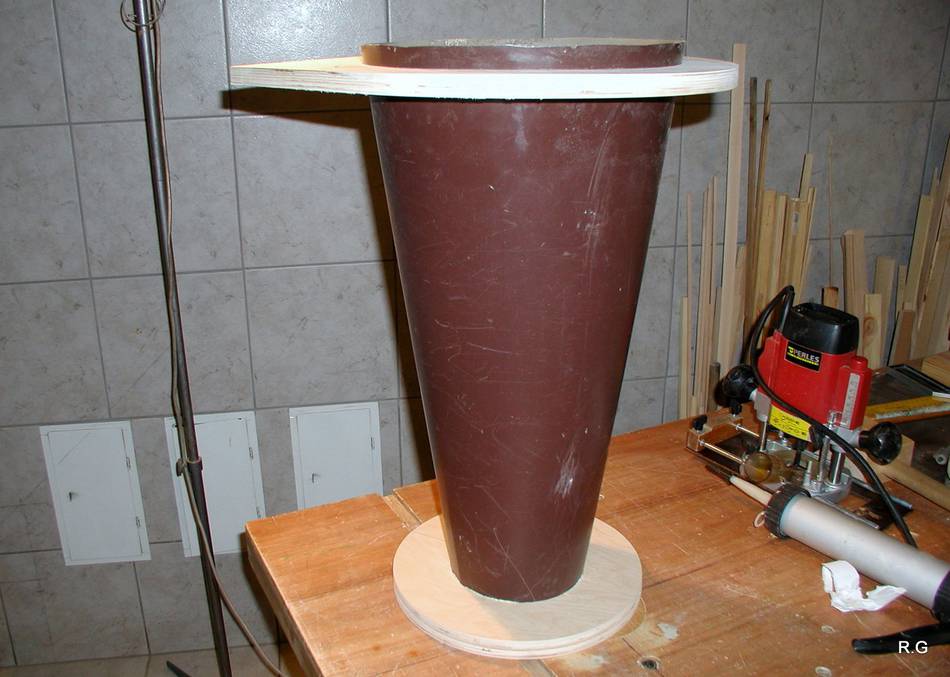

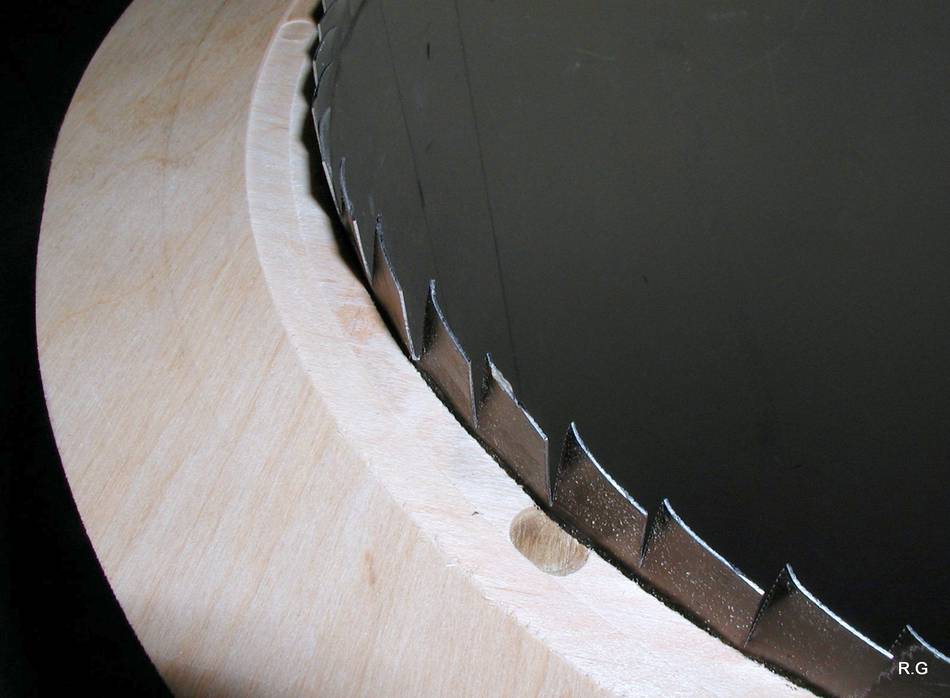

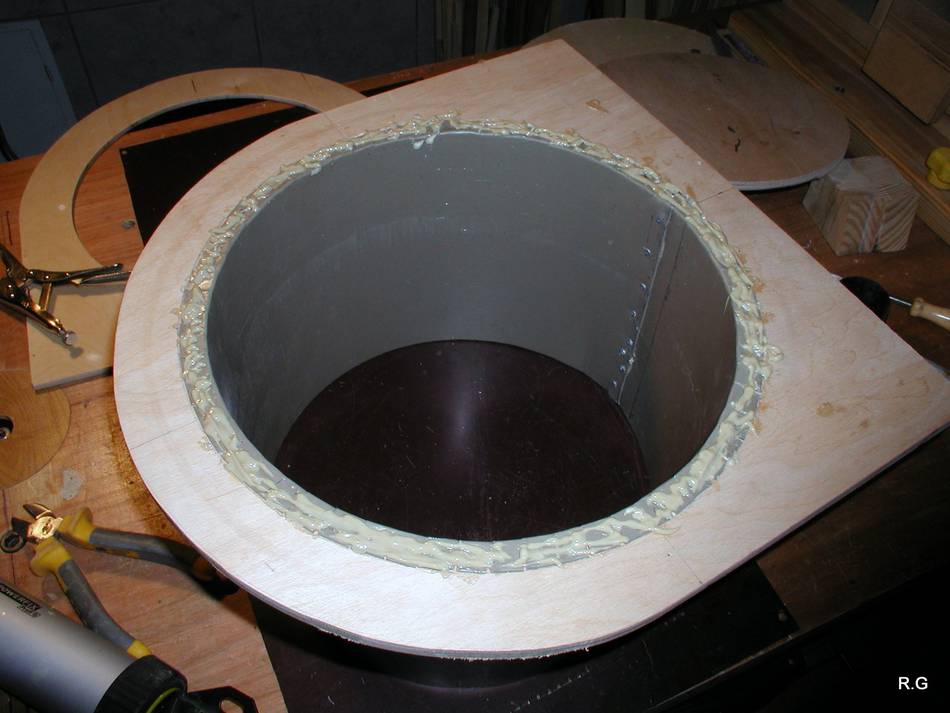

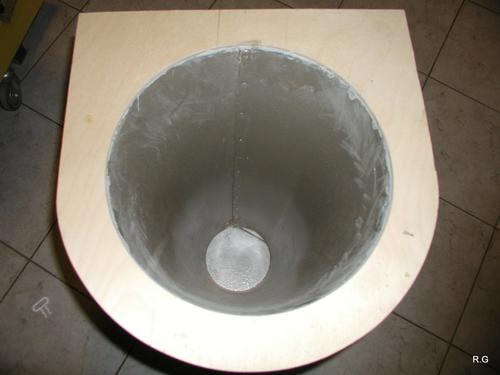

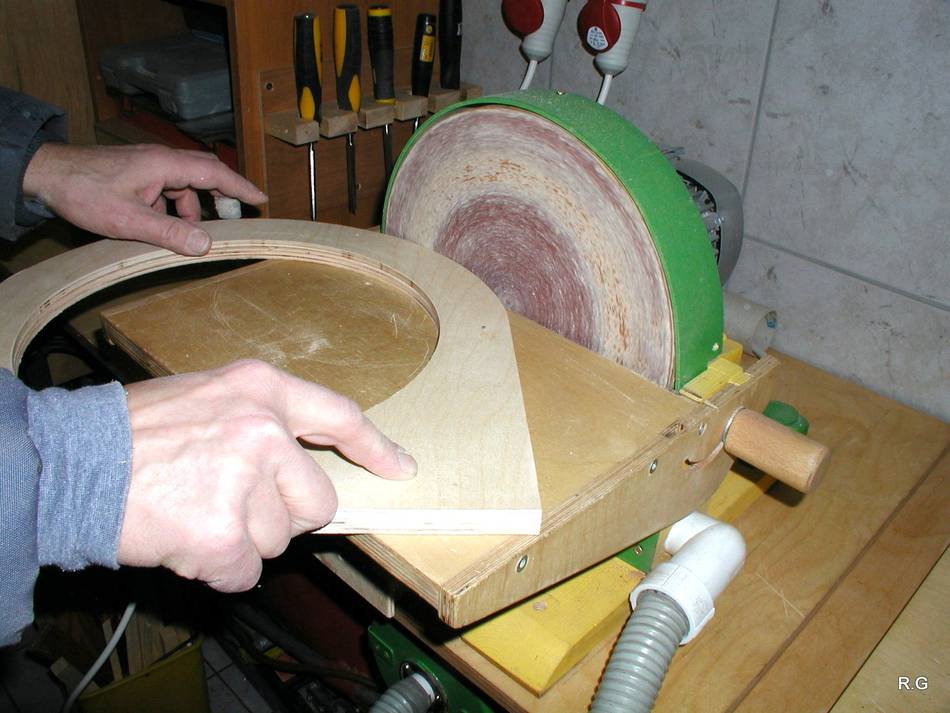

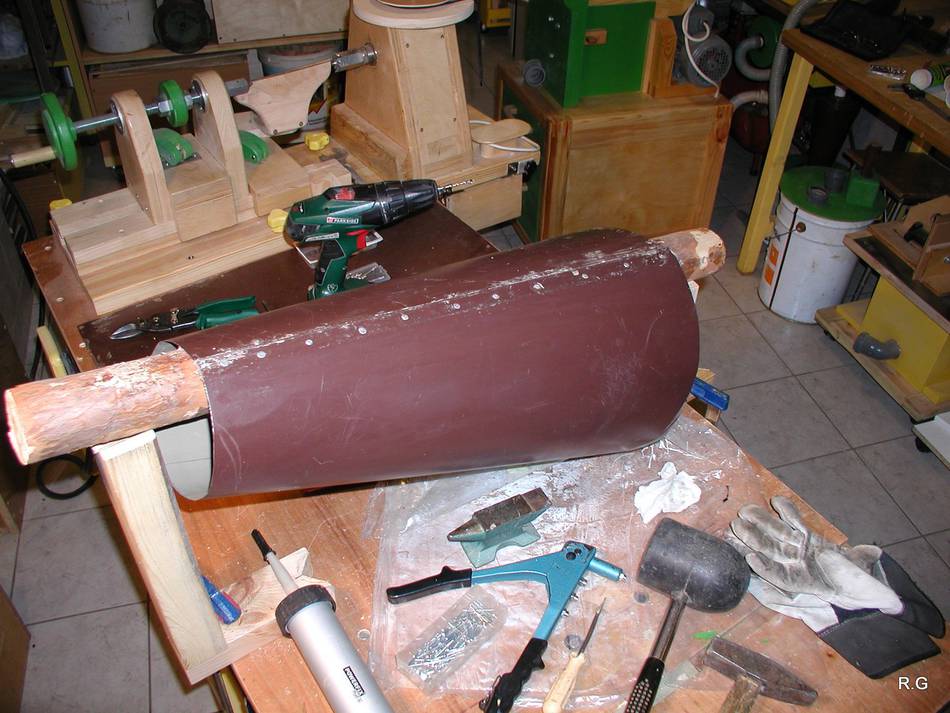

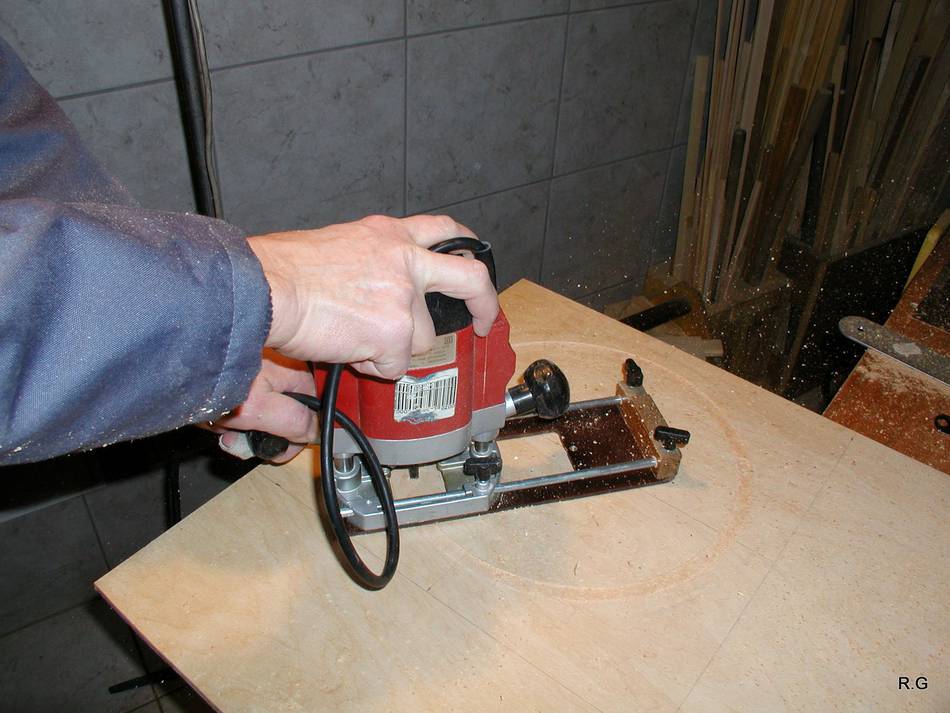

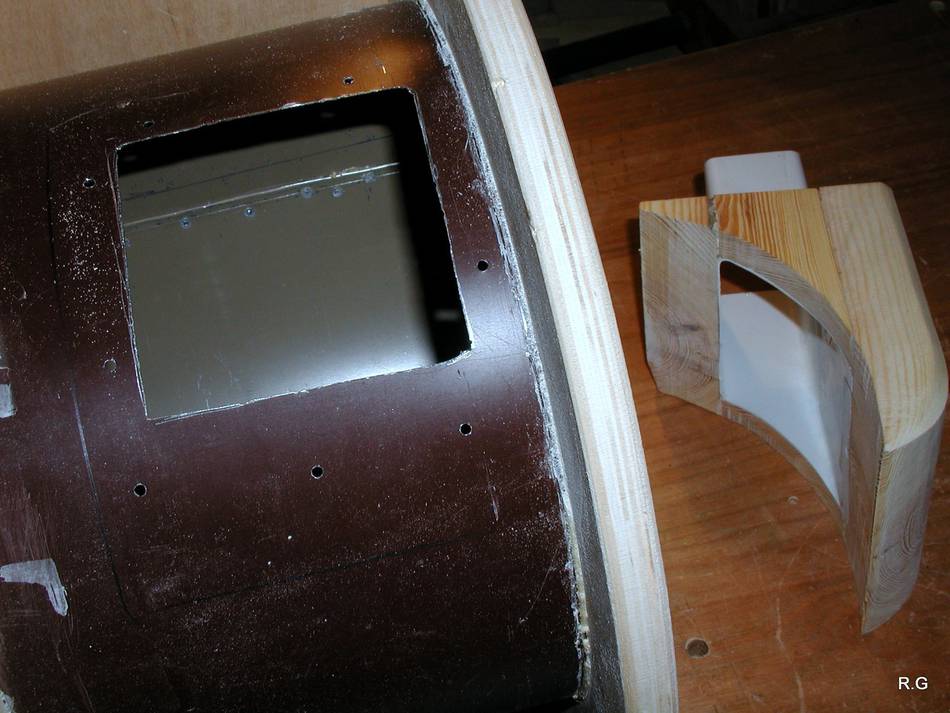

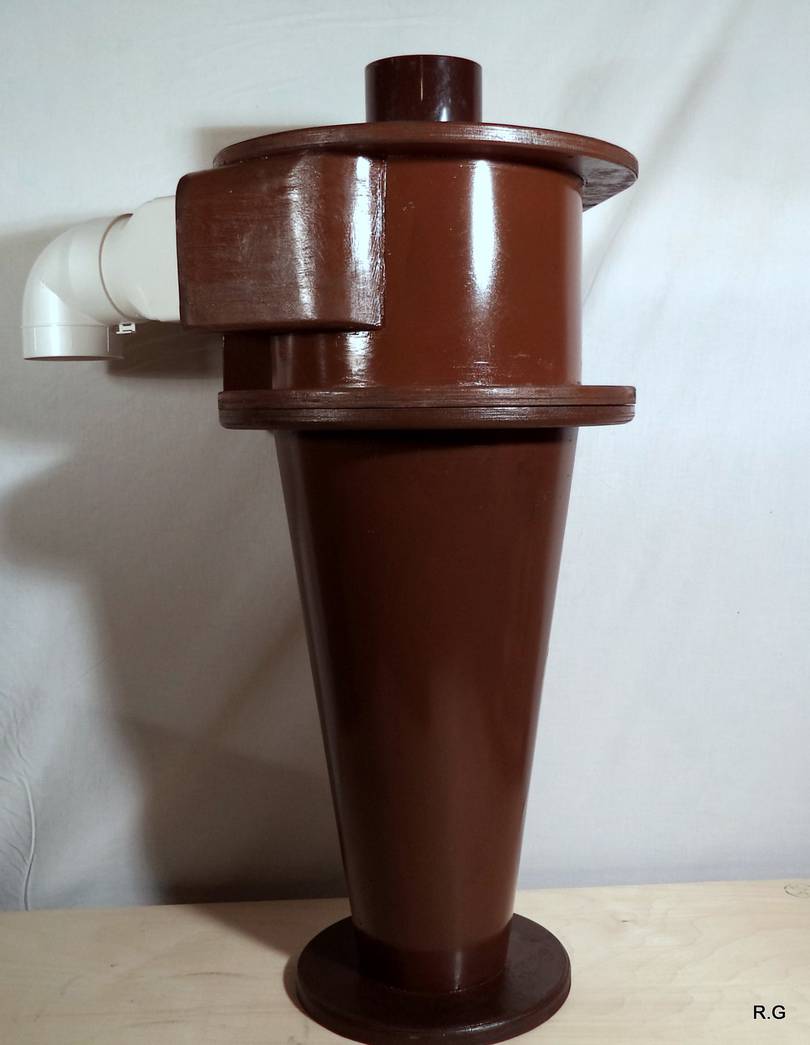

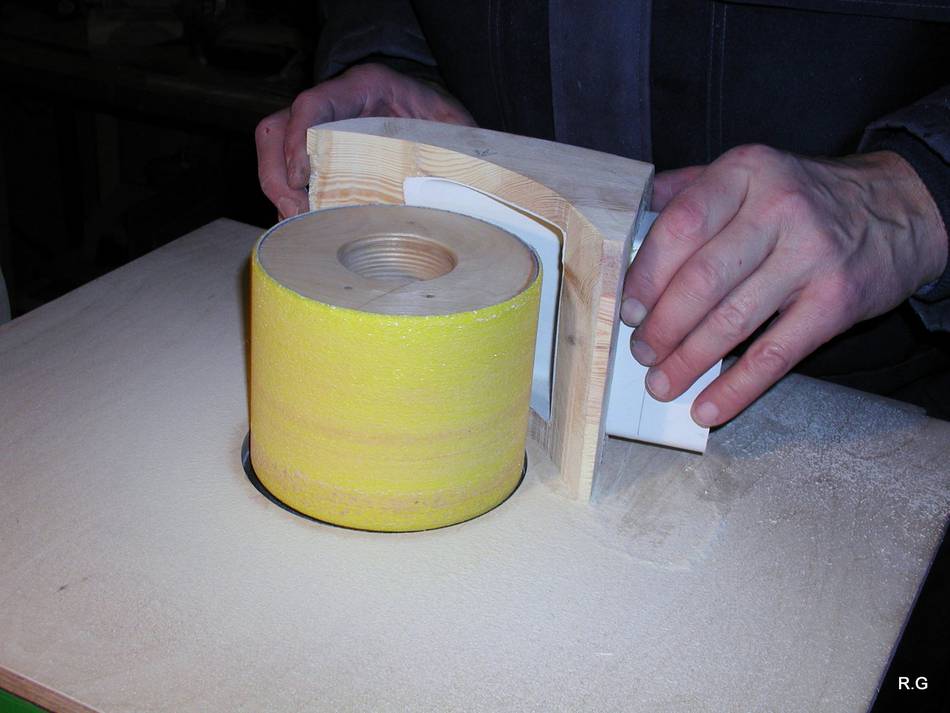

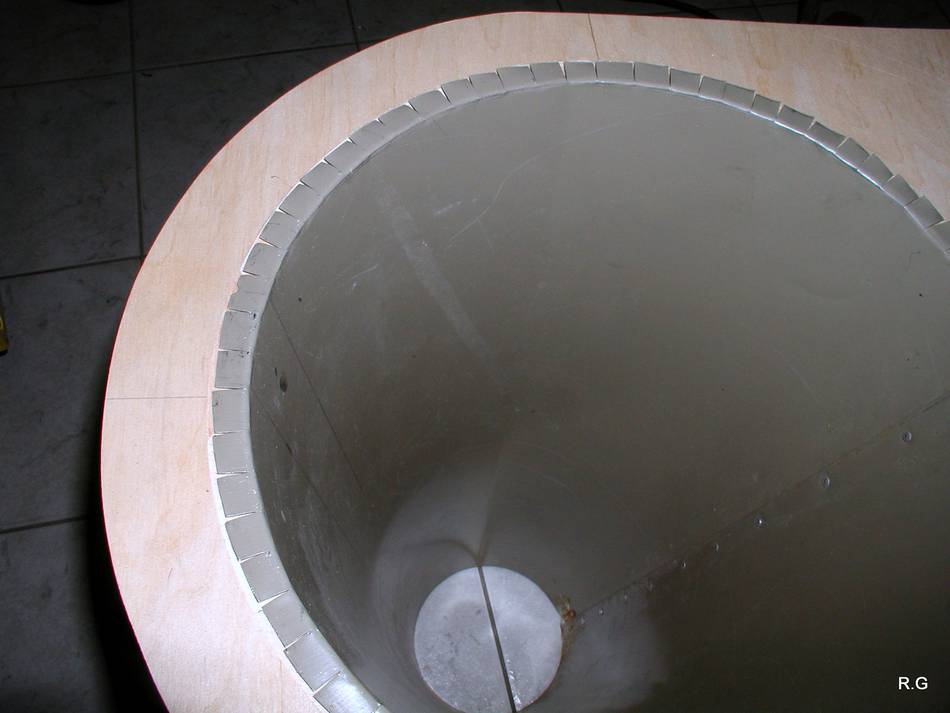

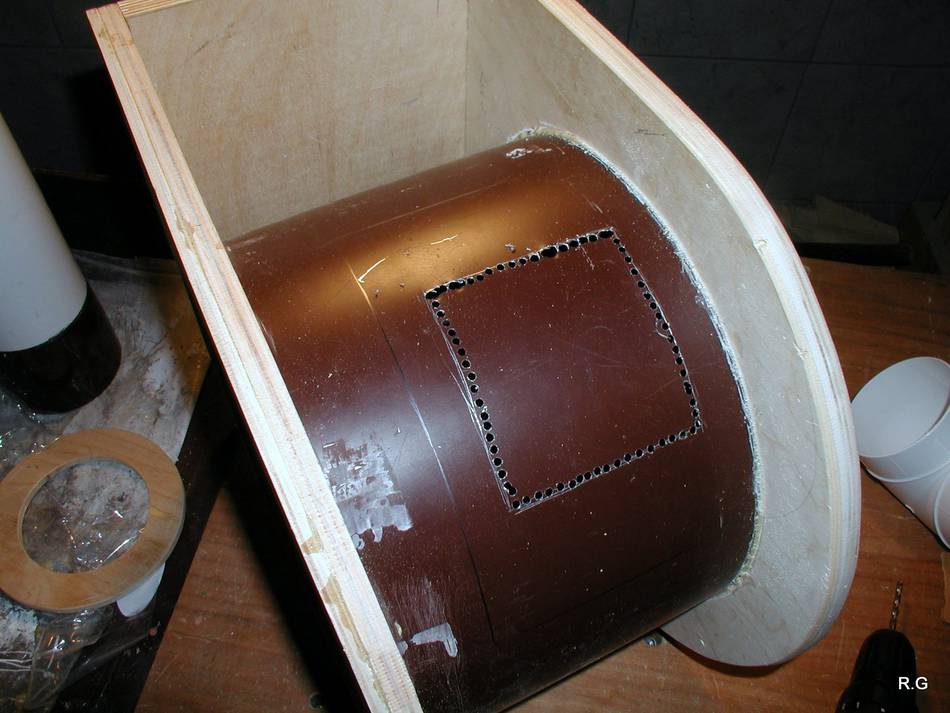

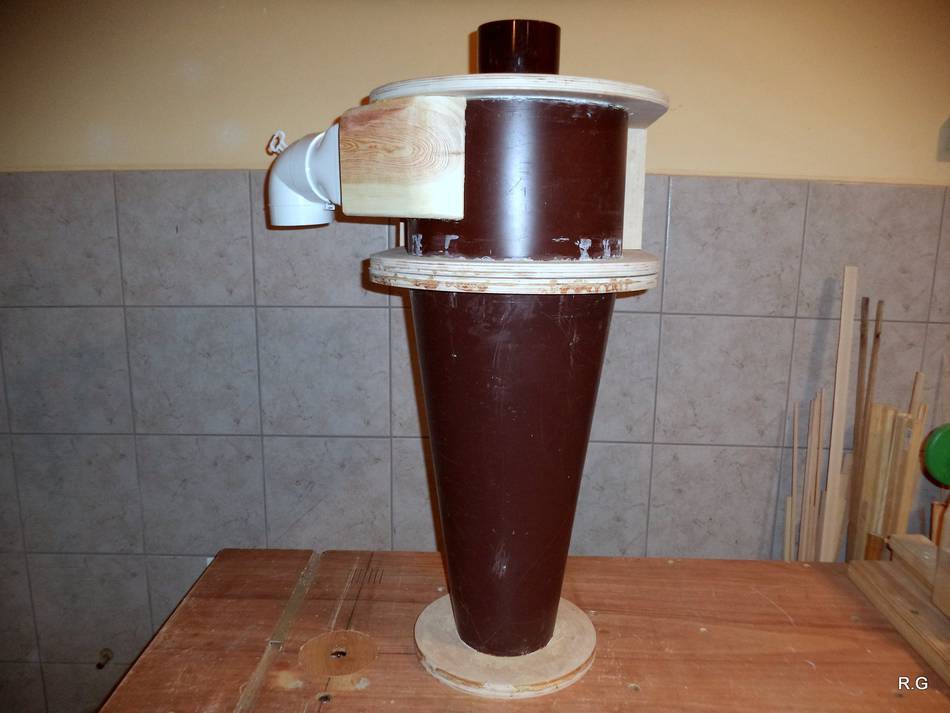

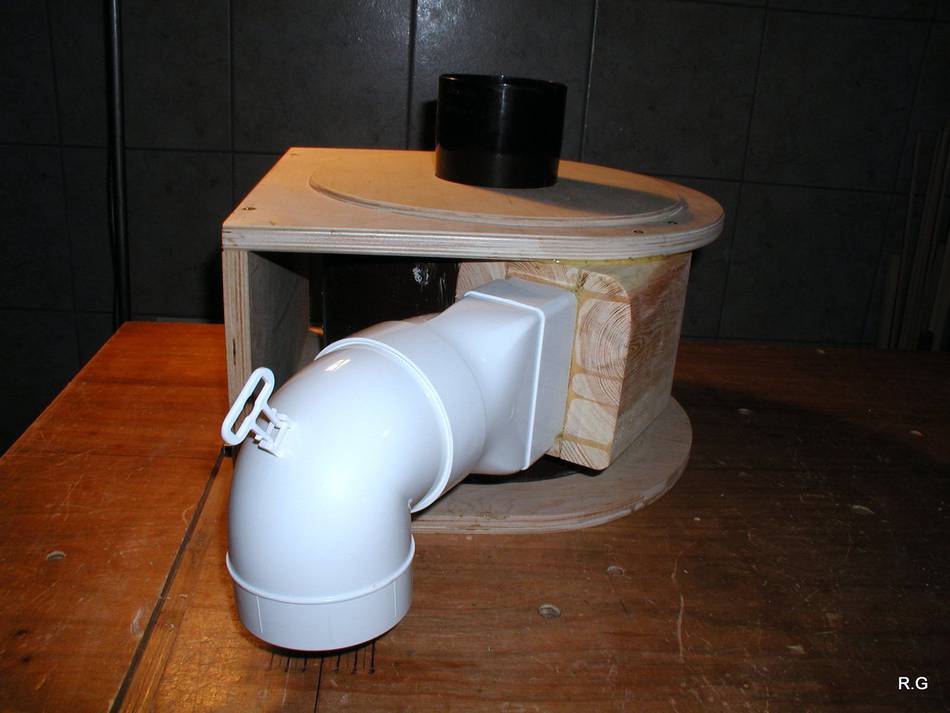

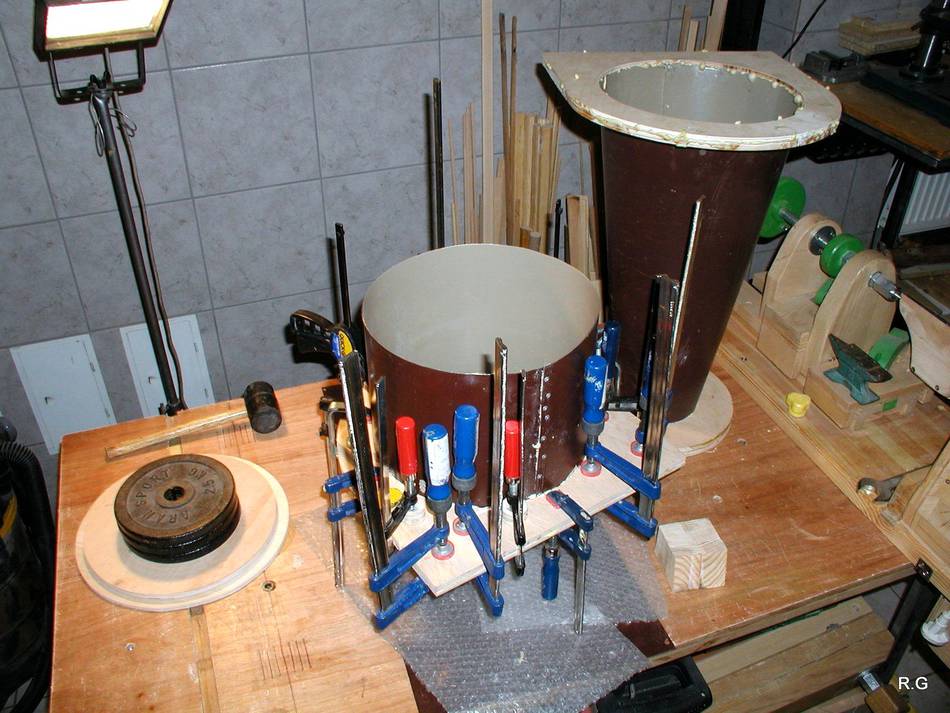

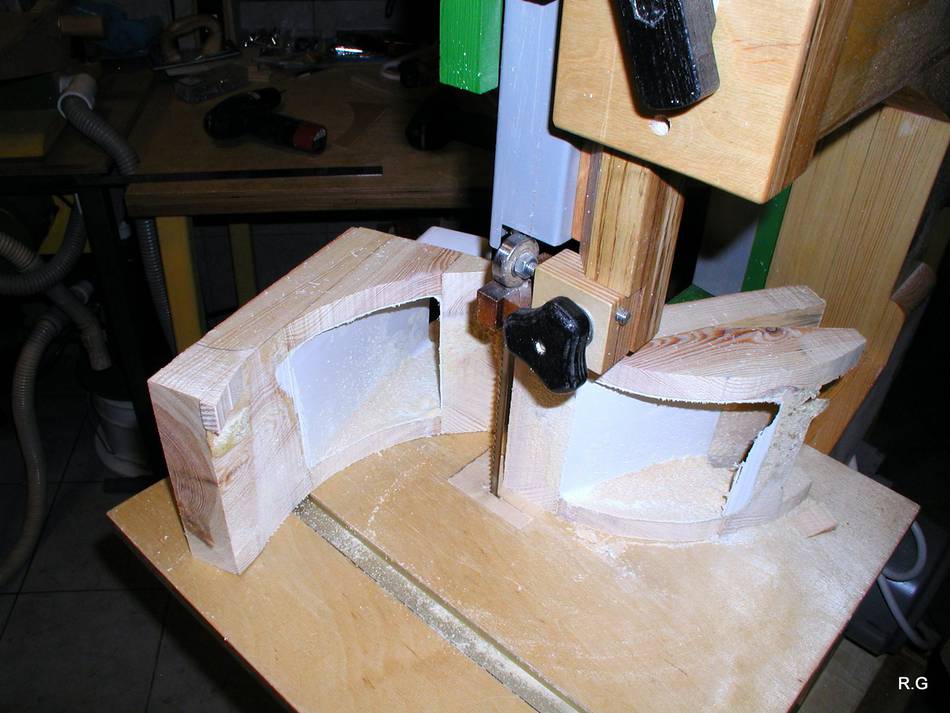

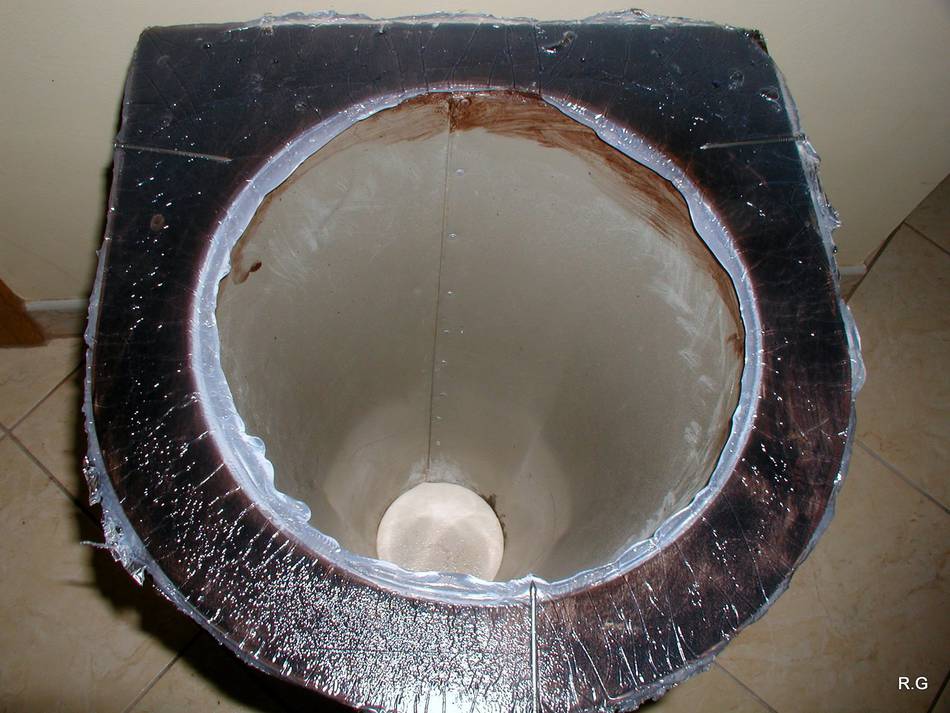

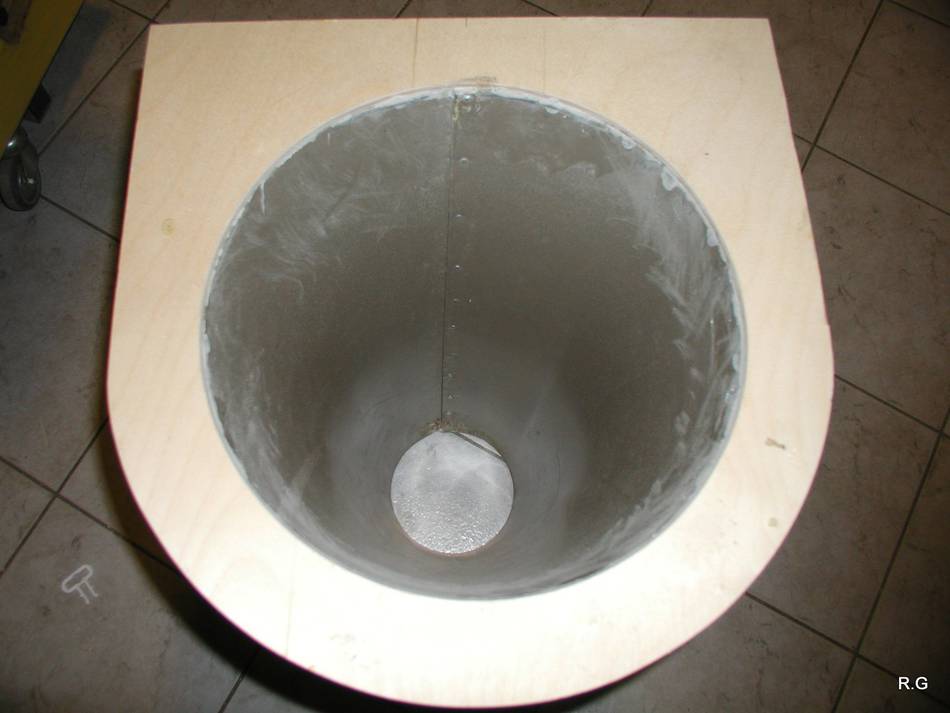

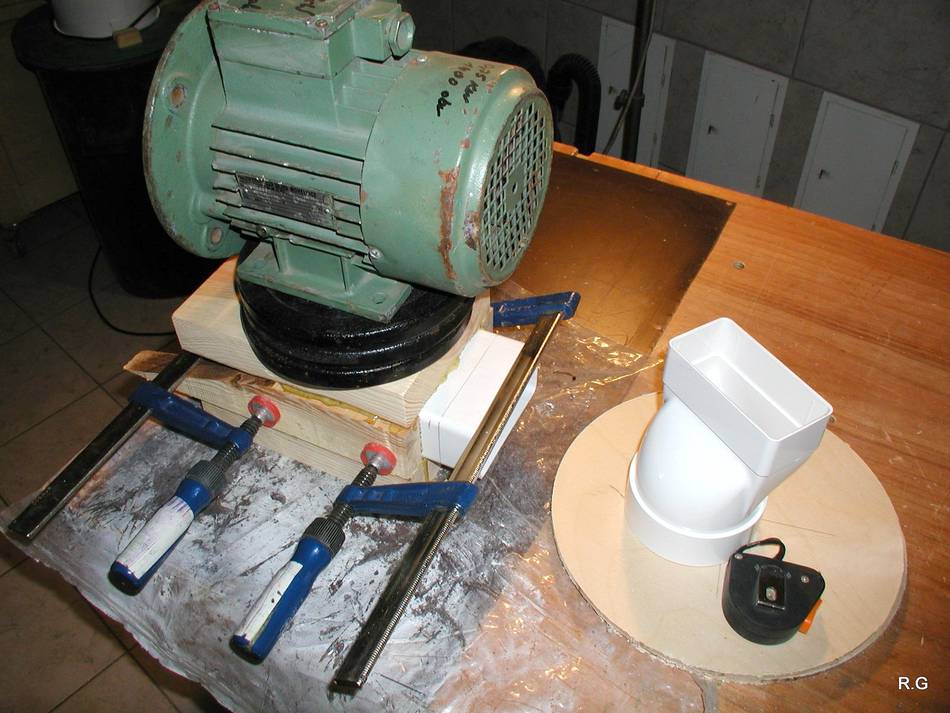

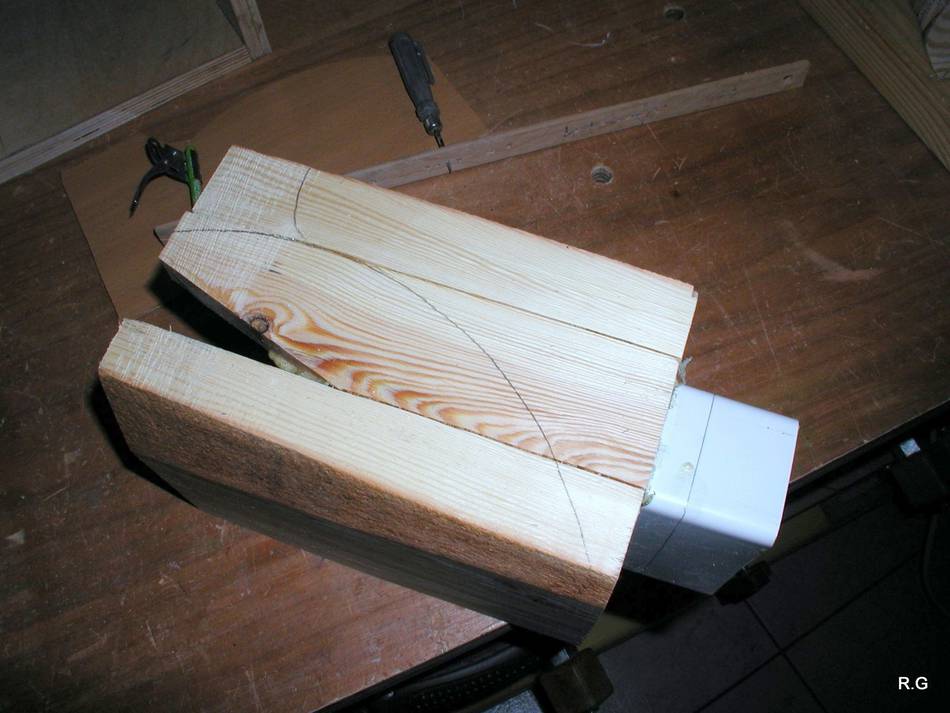

Building the cyclone inlet

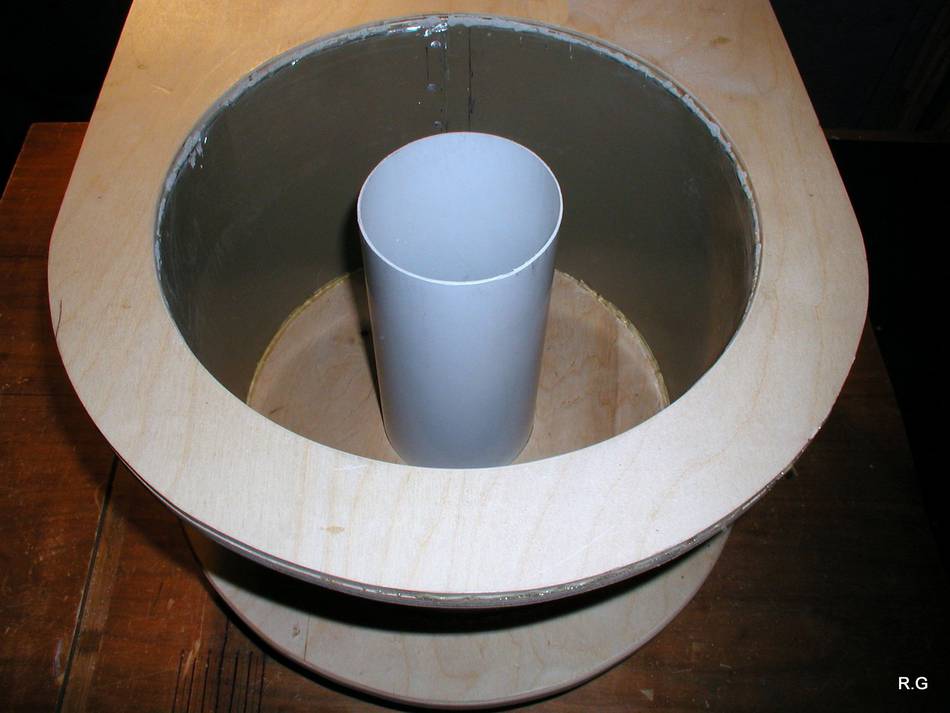

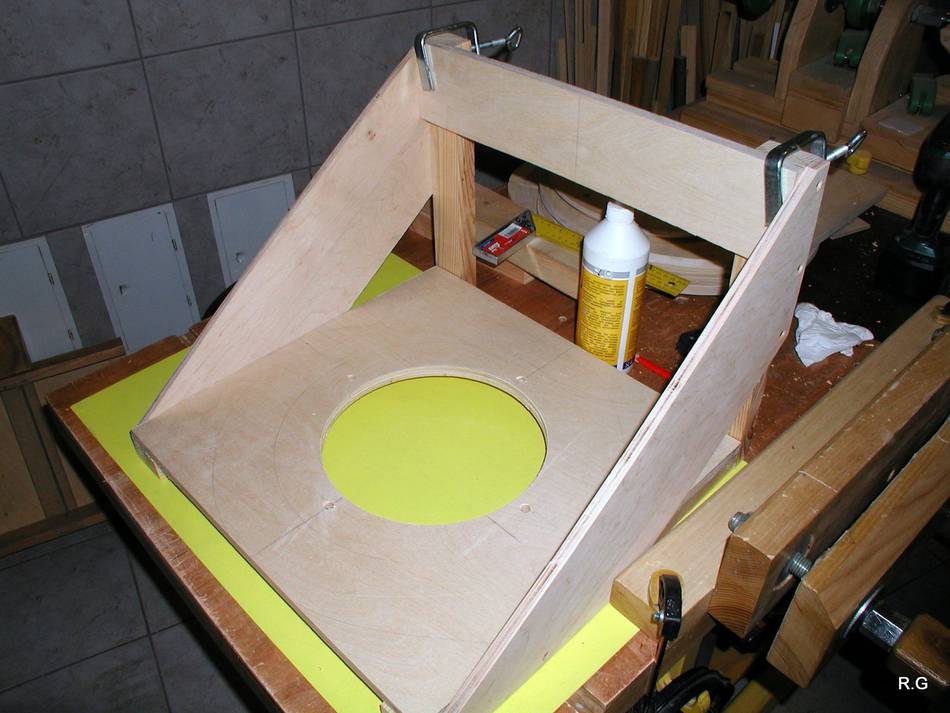

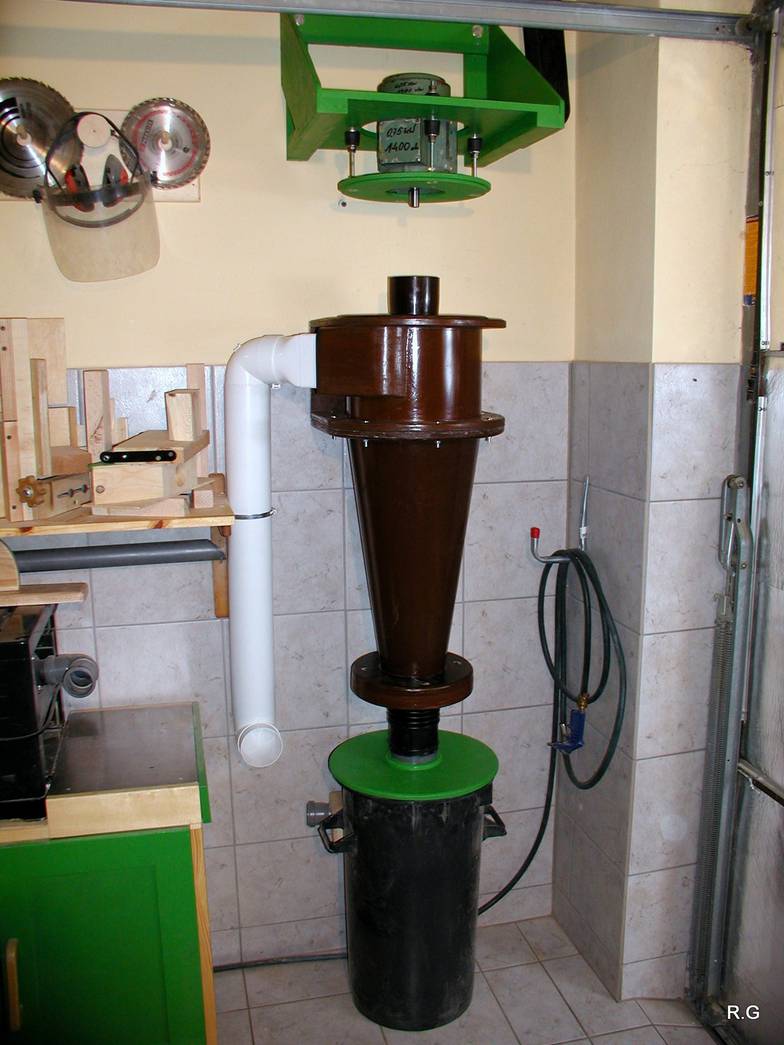

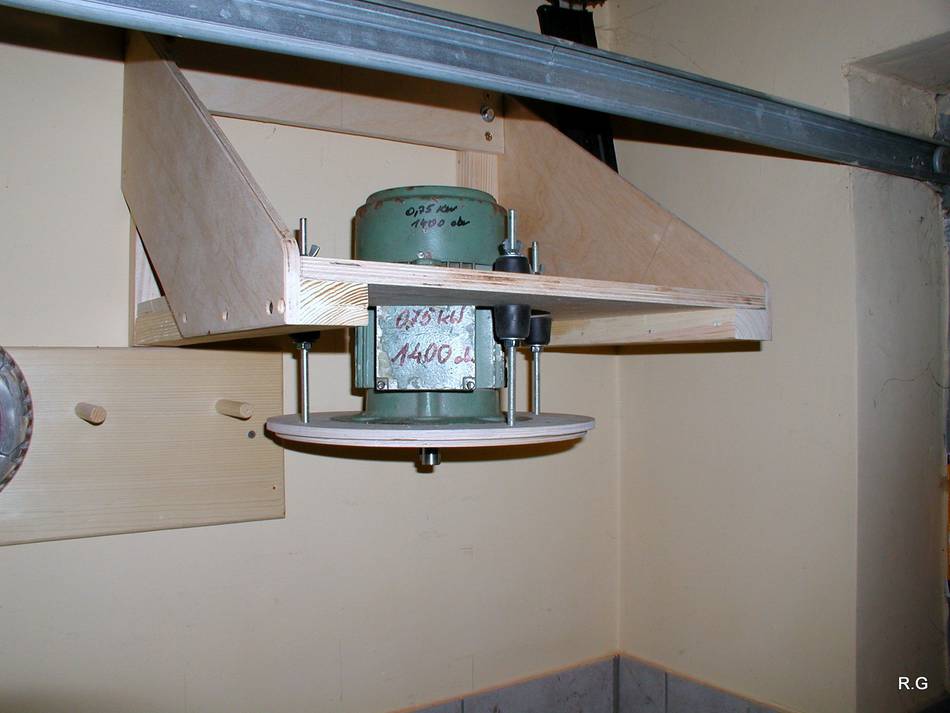

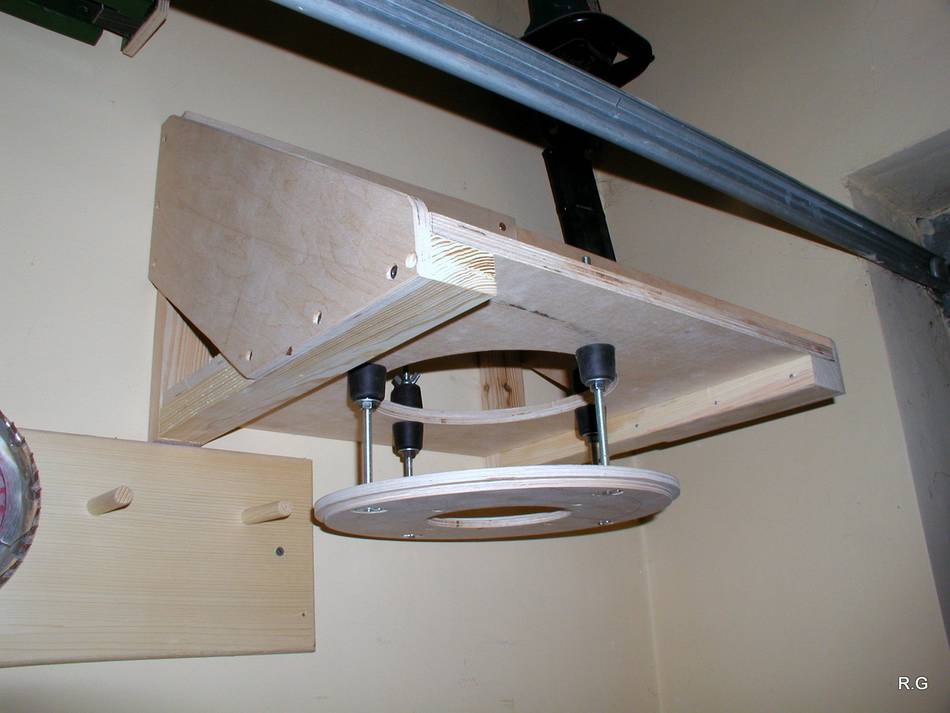

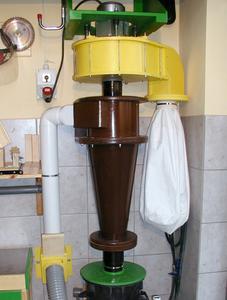

Wall-mount for the cyclone

Next: Building the blower
