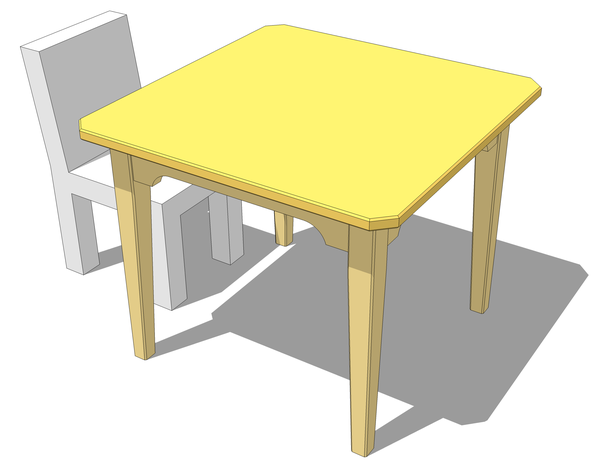

Kid's table plans

You can also download the Sketchup model for this kid's table

There is also an article about building this kid's table

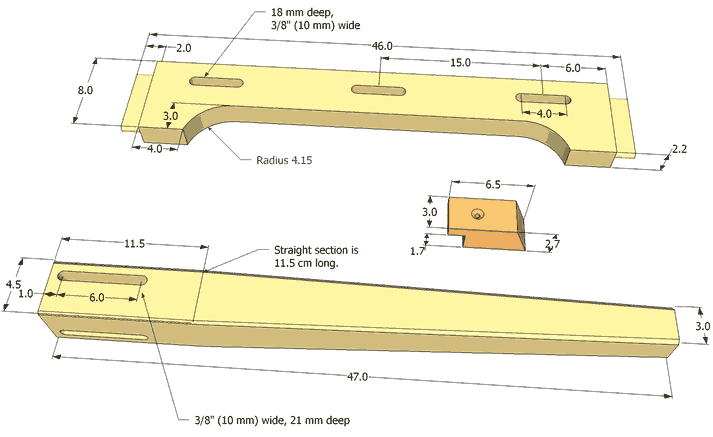

Parts dimensions


The top (not shown) is 60x60 cm. The corners are chamfered 3x3 cm.

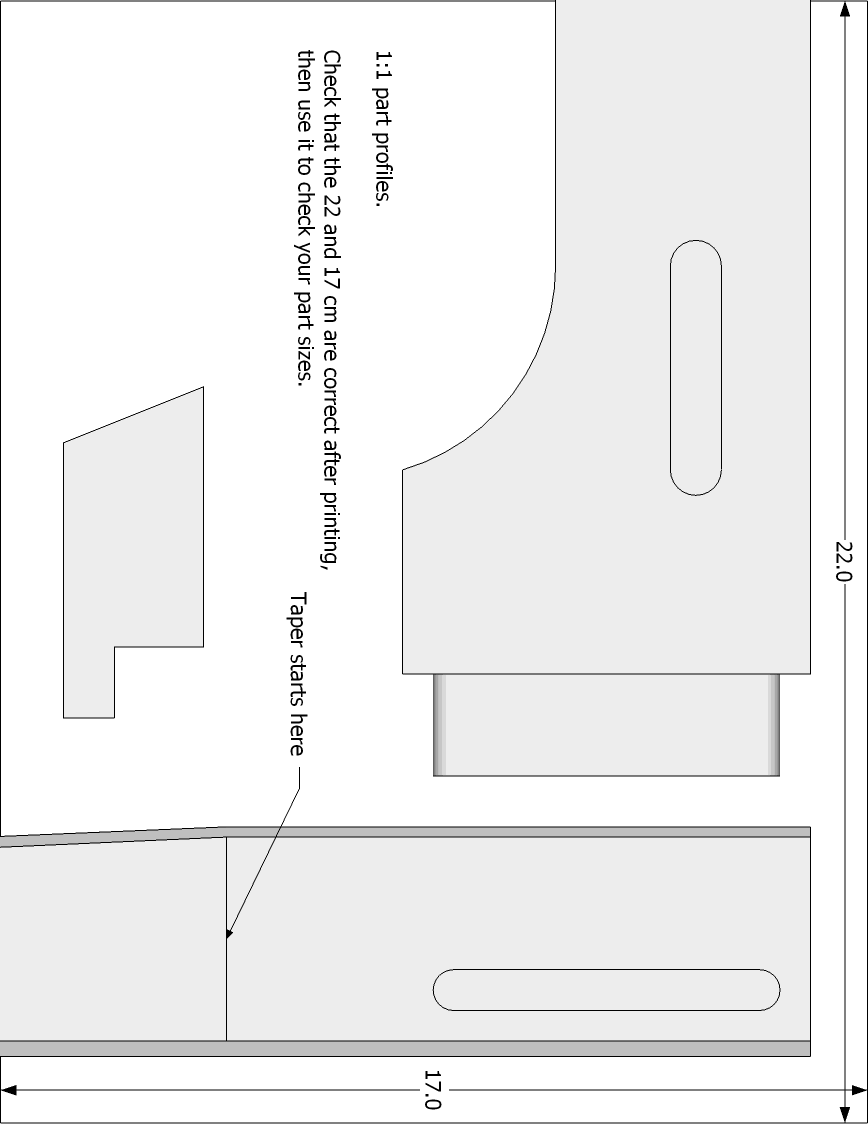

Profiles

If you print this page at "100% zoom", this image should come out actual size, and you can use it to check the size of your parts.


The image below is a 1:1 scale template. If you print this part of the article at 100% zoom level from your web browser, this image should come out as a 1:1 scale image of the joint.

See also:

Plans for an adult size version of this table

Building this table - photos and video of building this table
