Bandsaw plans - preview

Copyright 2010 Matthias Wandel

The plans include detailed dimensioned drawings of all the parts

Bandsaw frame

Blade guides

Table and trunions

Wheel mounts

Wheels

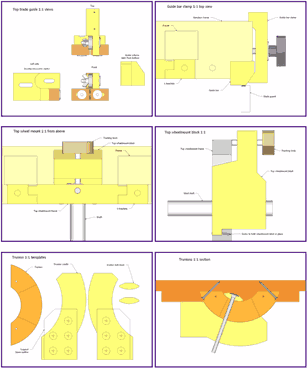

1:1 printable templates

There are 1:1 templates for some of the parts, as well as a large multi-page template of the whole bandsaw frame.
A diagonal grid on the multi page printout helps line up the pages accurately.

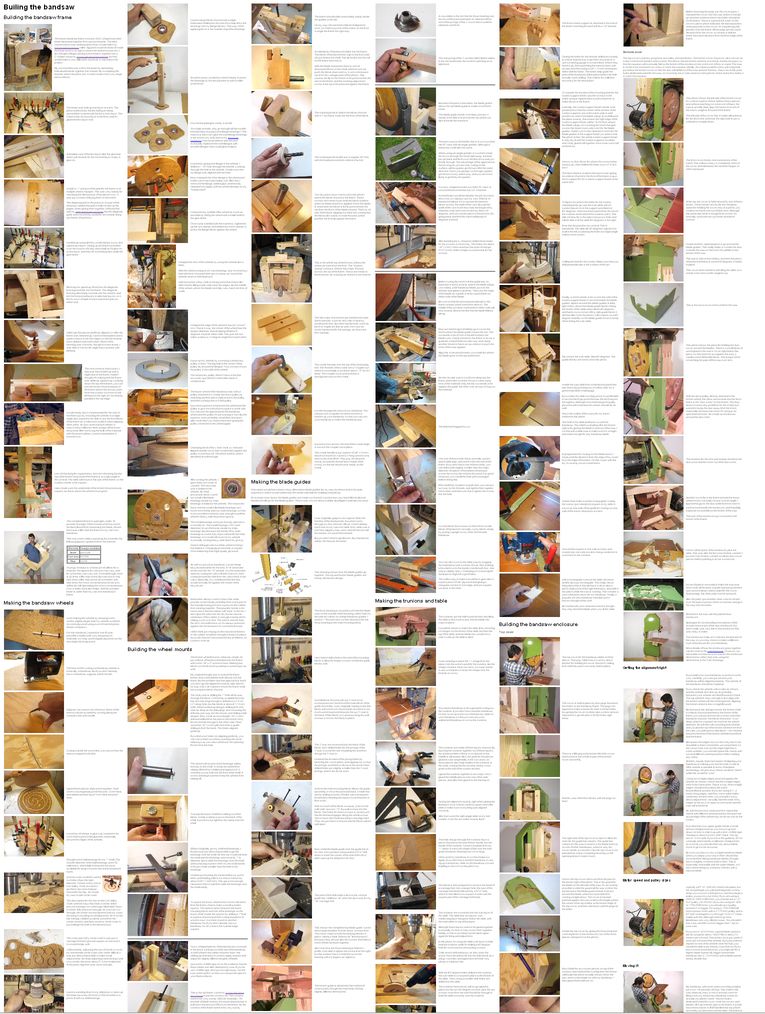

Building instructions

The plans also include extensive building instructions, with over 120 photographs showing the steps involved in building this bandsaw.
All the photographs can be enlarged to 1000 pixels wide.


See many reader built bandsaw builds:


Buy the plans
