Small table plans

These are plans for a small kitchen table or card table.
They are based on my kids table plans but scaled up to a regular sized table.

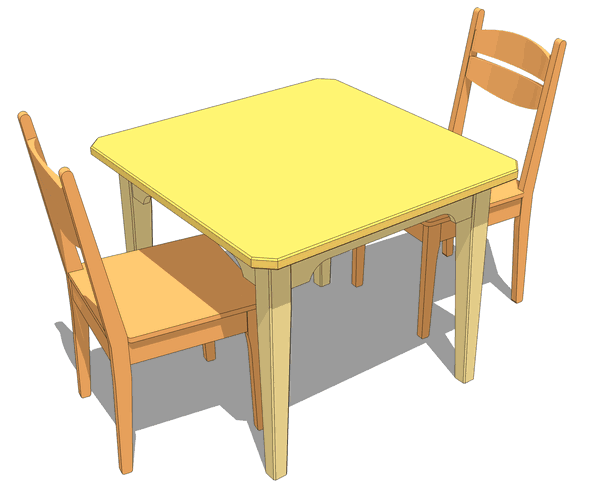

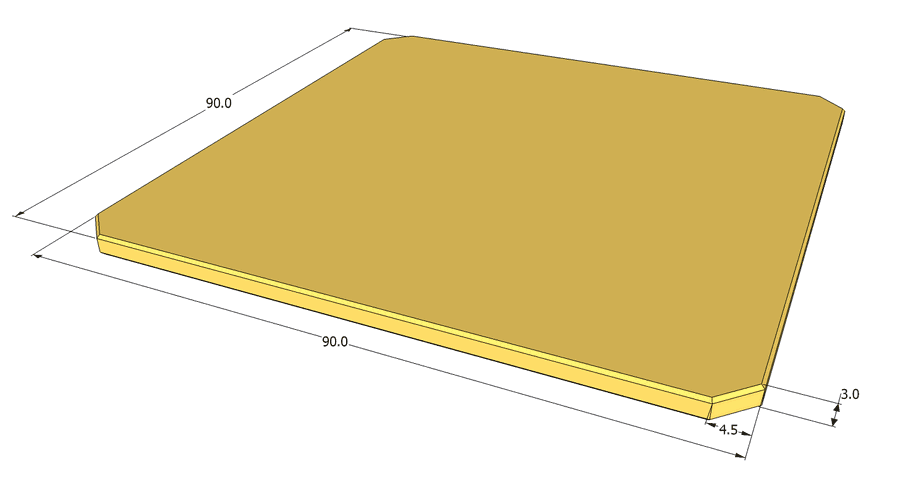

The table is 90x90 cm (3' by 3') and 73.5 cm (29") high. It's a very simple and sturdy design, but it's not possible to take the legs off for moving. Some of my other table plans have removable legs. The picture above shows the table with some kitchen chairs which I also have plans for.

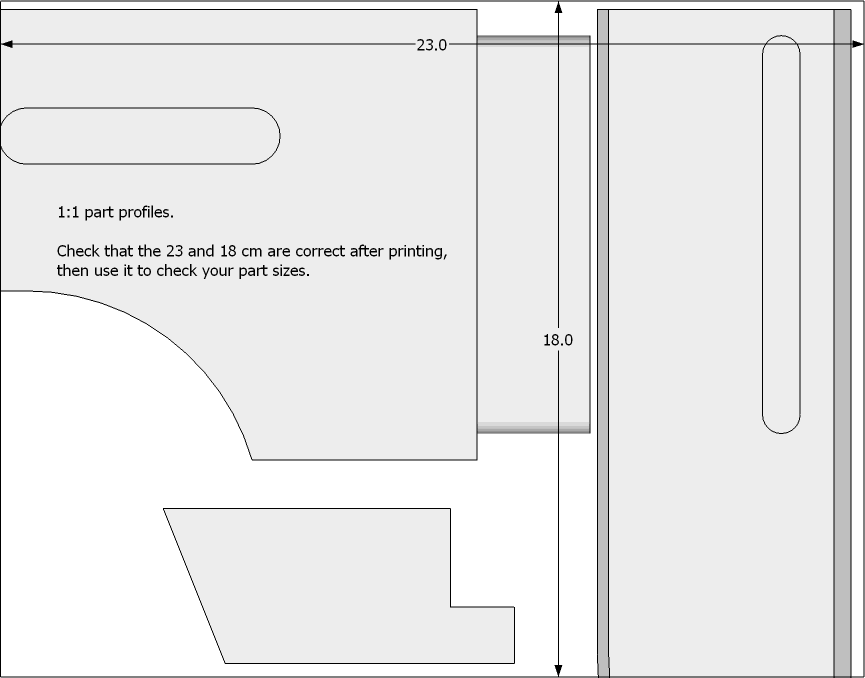

The image below is a 1:1 scale template. If you print this part of the article at 100% zoom level from your web browser, this image should come out as a 1:1 scale image of the joint.


SketchUp model for this table

See also:

Kid's table plans

Building a smaller version of this table - photos and video of building a two-thirds scale version of this table
