Making a spinning top on the lathe

Having made some improvements to my lathe it was time for another small project to try it out. This time I made a small spinning top.

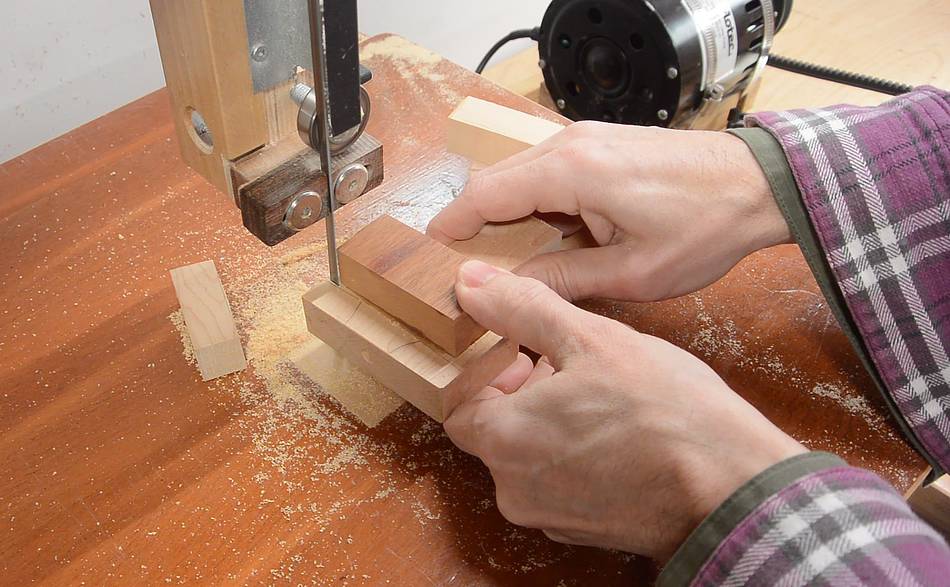

The blank consisted of a 20 mm thick piece of maple with two pieces of mahogany glued to the side to get sufficient thickness for the wide part of the top. I cut off as much as I could on the bandsaw before putting it on the lathe.

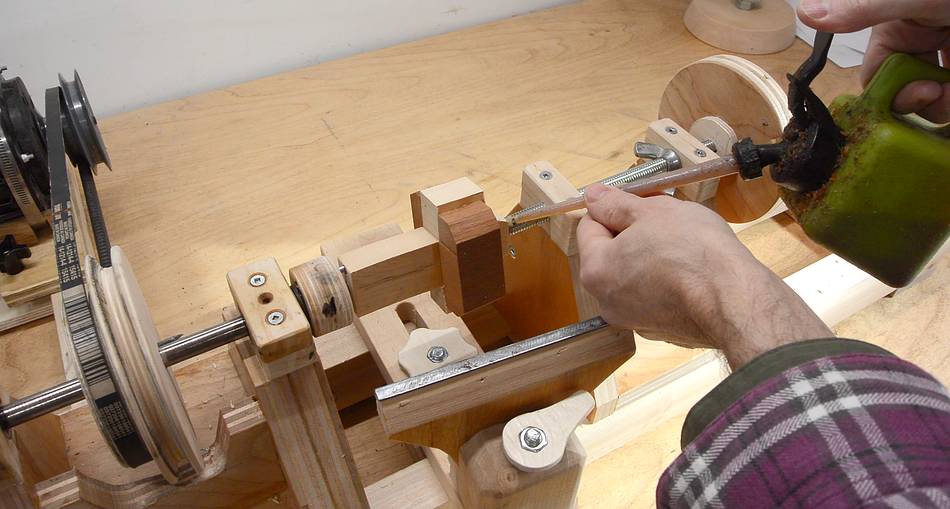

The blank mounted on the lathe. I'm adding a drop of oil where the workpiece spins on the cone of the tailstock.

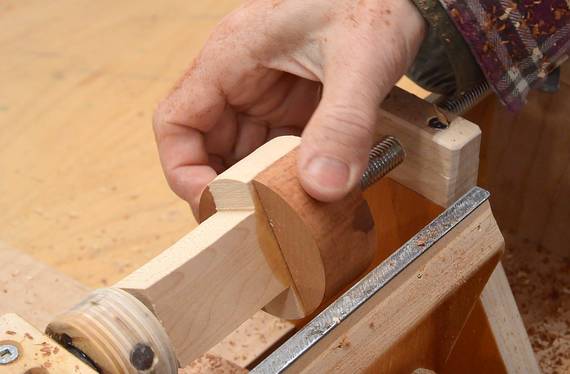

Starting to rough it out.

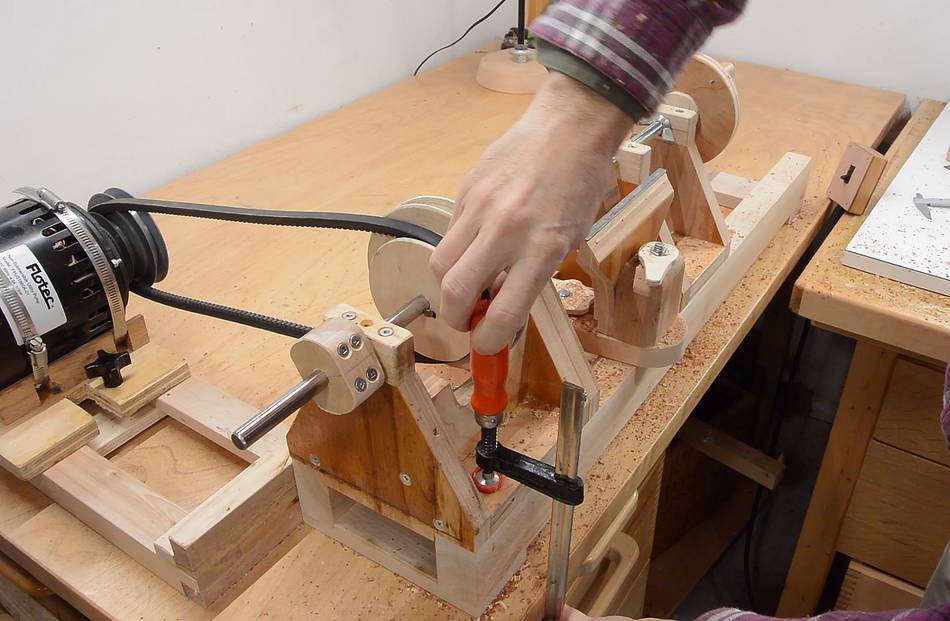

Before I made a motor mount, I clamped both the motor and the lathe to the workbench to maintain belt tension. With the motor attached to the lathe, I could use it without clamping it down. But with the lathe as light as it is, and the vibrations from turning, the lathe started to wander away from me. So I clamped it down again.

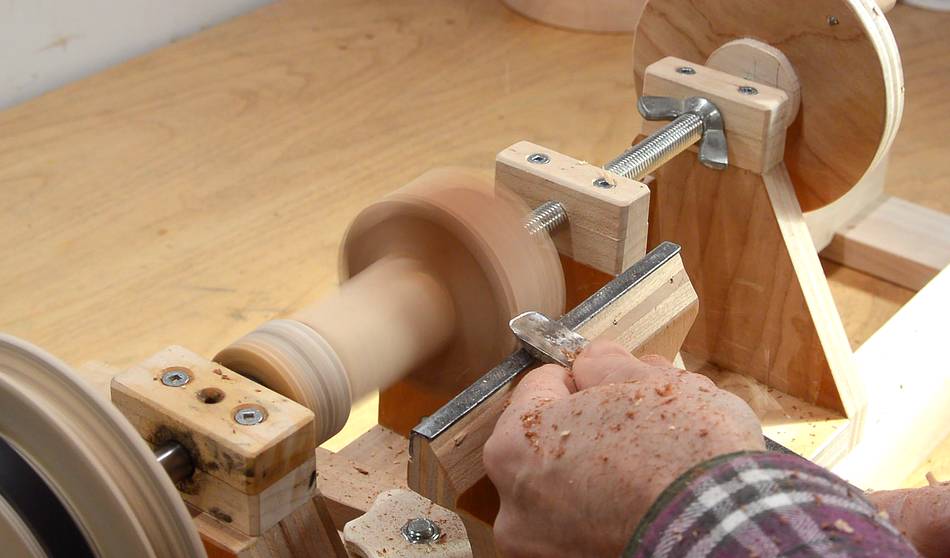

Turning the blank down sufficiently that it no longer has any flat spots.

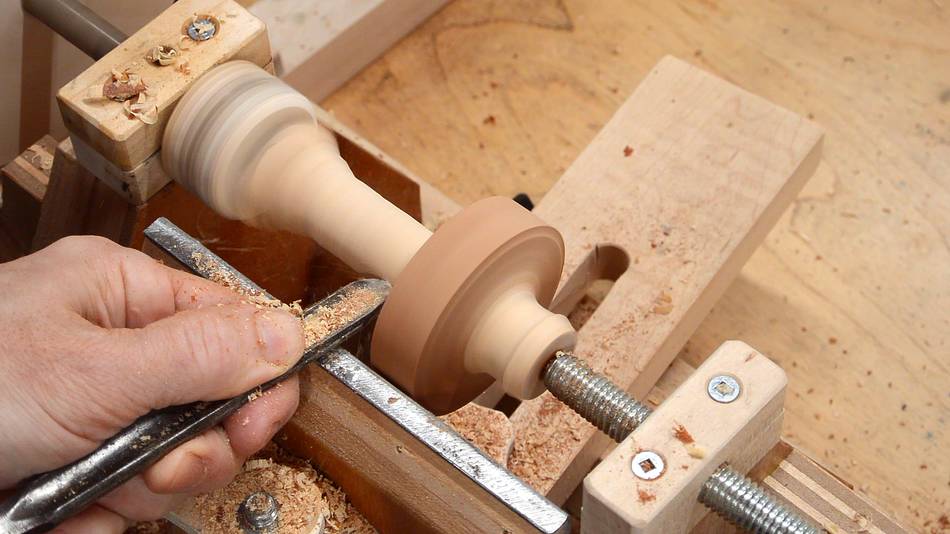

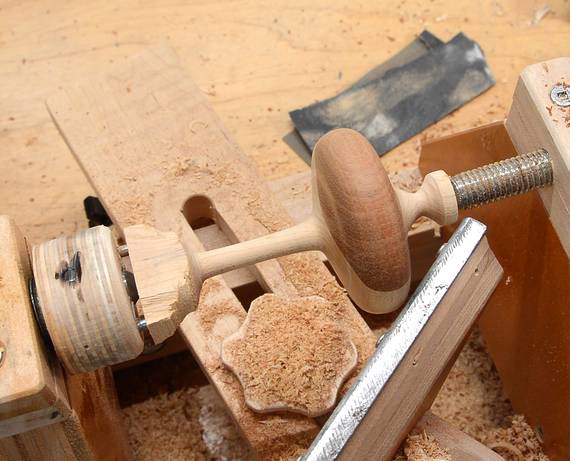

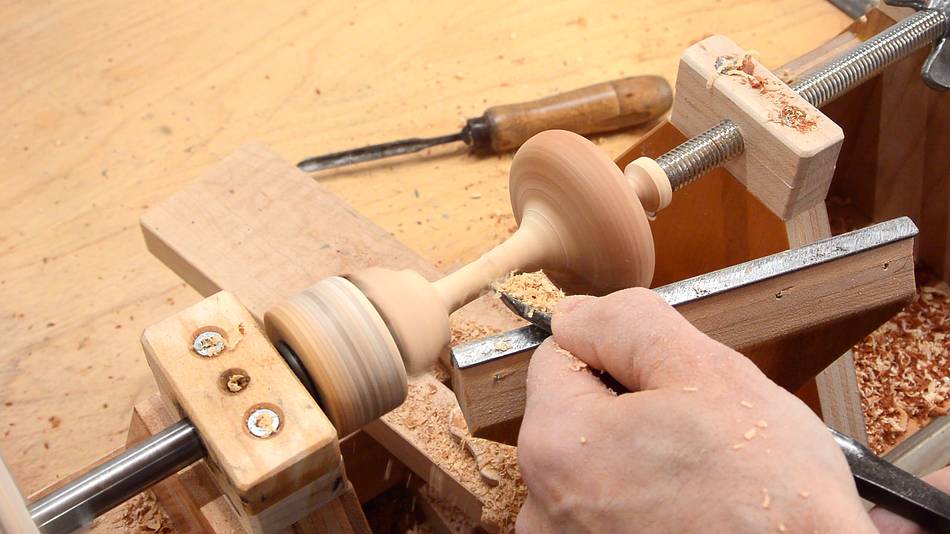

After that I shaped the main bulb. With the bulb shaped, I started thinning down the stem and the point of the top. I thinned these down last because once they are thin, the workpiece becomes too weak to do much work on the wide bulb part of the top.

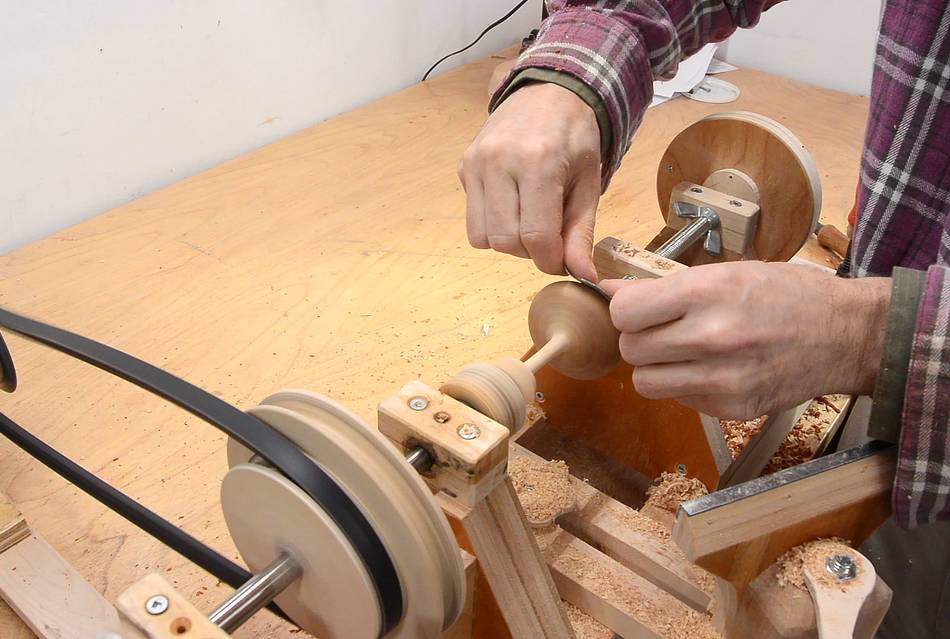

Now sanding it smooth.

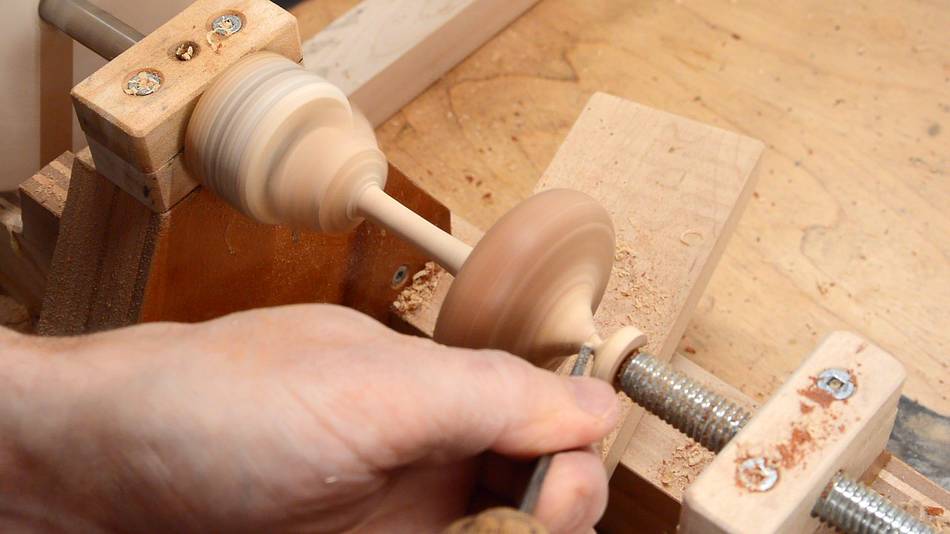

The last thing I did was to turn the point of it down to about 2 millimeters thick -- thin enough for it to almost break. I half expected the workpiece to go flying in the process of doing this.

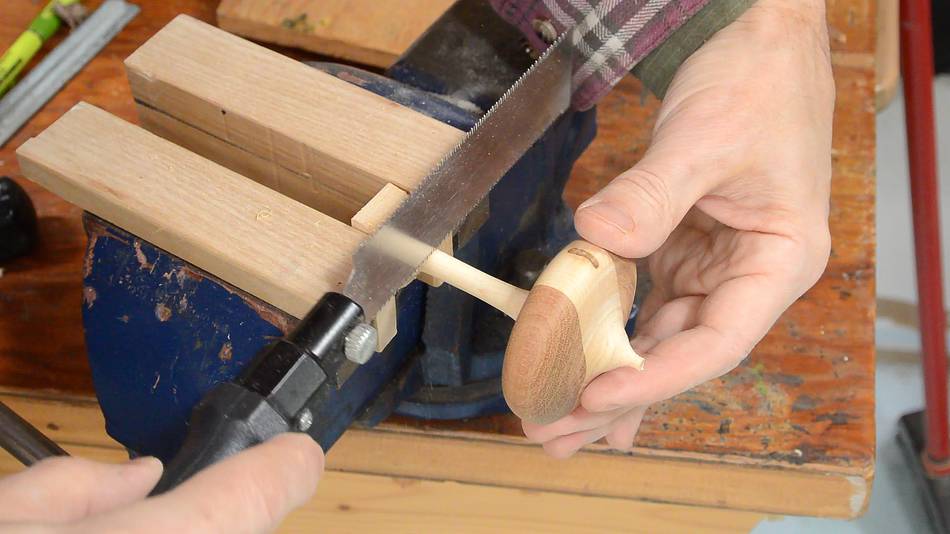

I then took the piece out of the lathe and cut it off on both ends.

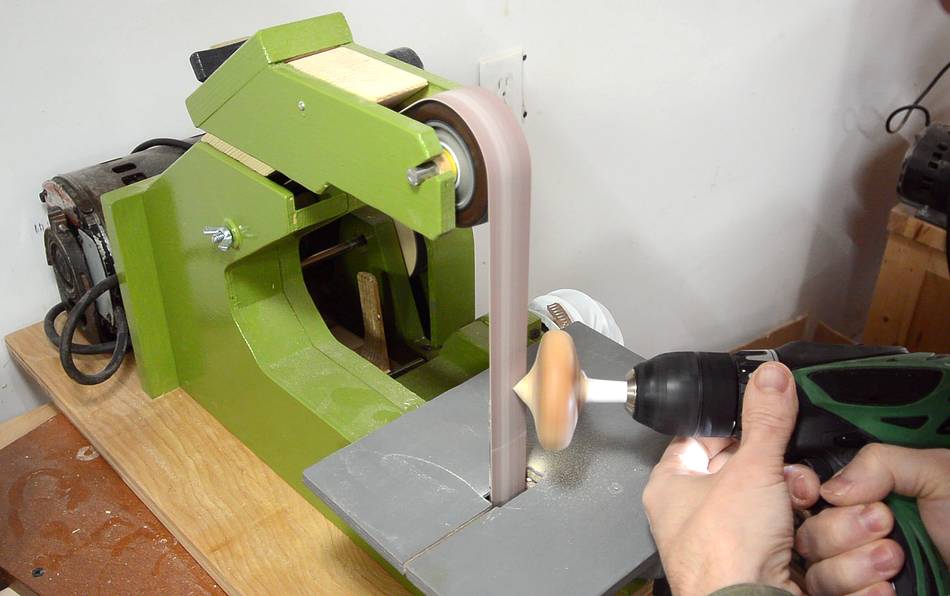

I wrapped some paper around the stem, put it in a drill, and then spun it against my strip sander to finish shaping the point.

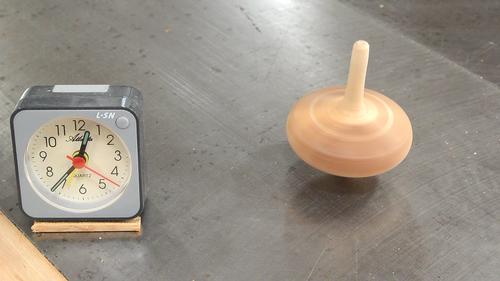

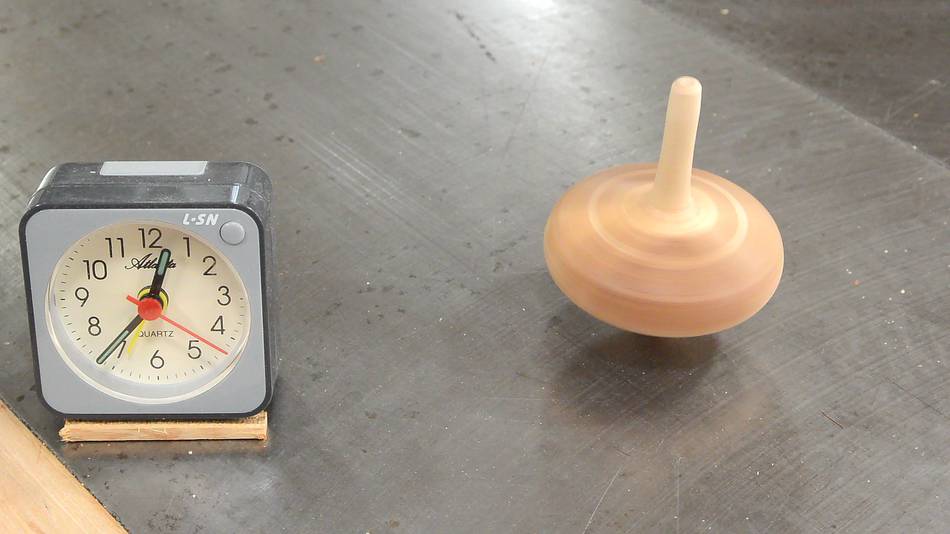

Testing it. Getting a one minute spin out of it was relatively easy. Good enough for me.

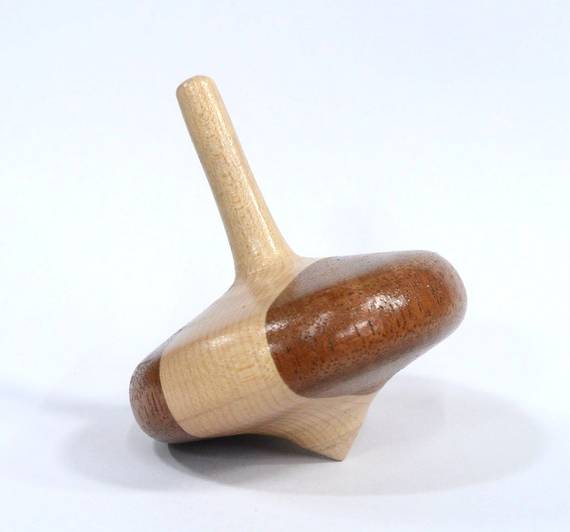

There are brass tops that you can buy that can spin for ten minutes straight. I wasn't aiming for that kind of record.
