Hector's Thien-baffle shopvac

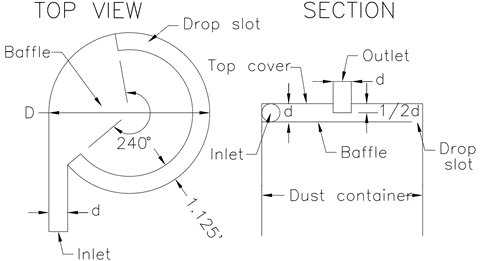

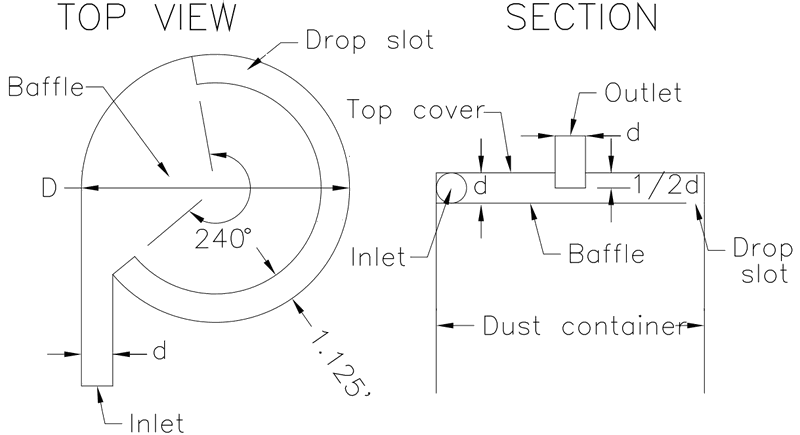

You can download a PDF of this drawing: thien_separator.pdf

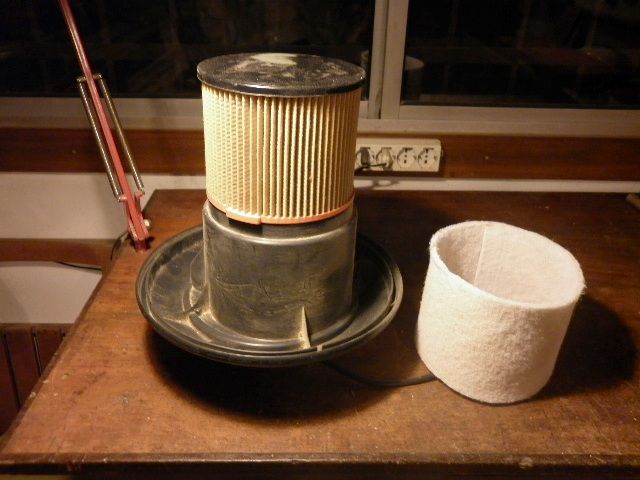

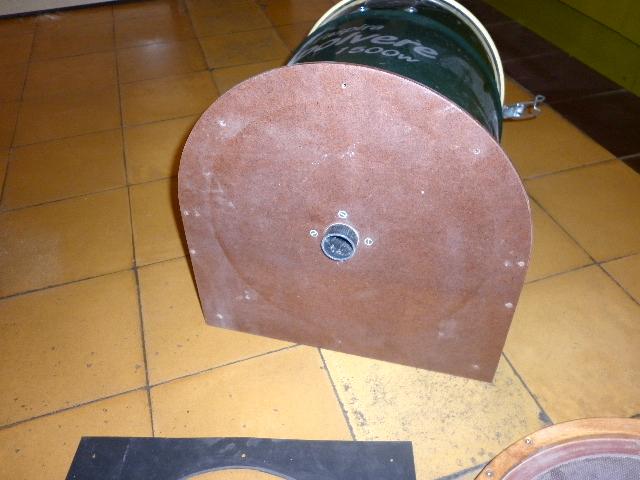

The shopvac motor, filter and filter cover

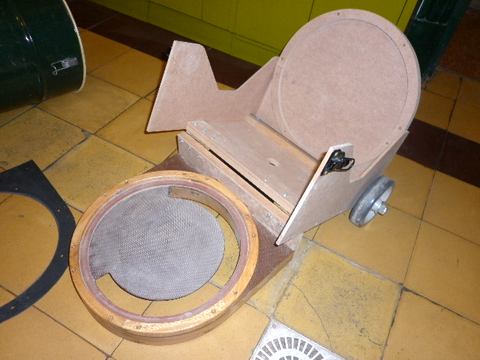

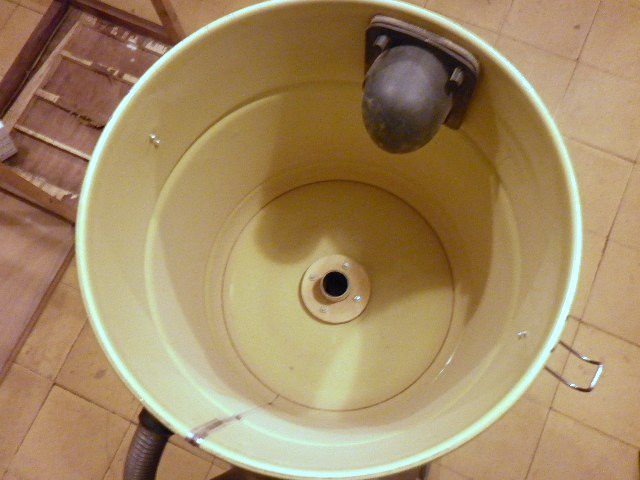

The thien-baffle/Separator as viewed from the dust chamber end

Inlet into the Thien-baffle chamber

Outlet from the Thien-baffle chamber

A sizeable pile of dust and shavings for a test

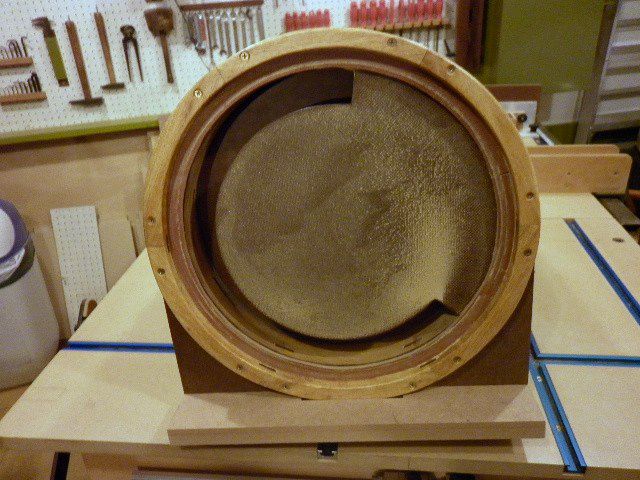

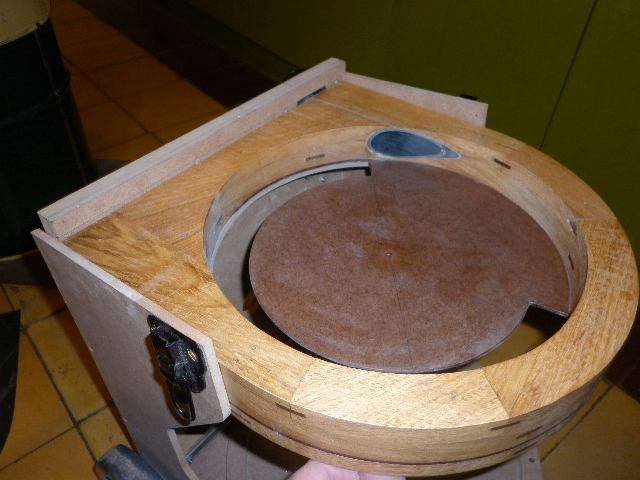

A view of the motor/filter compartment before the test

The same compartment after sucking the pile. I had to use a brush to collect the few "fines" that got by.

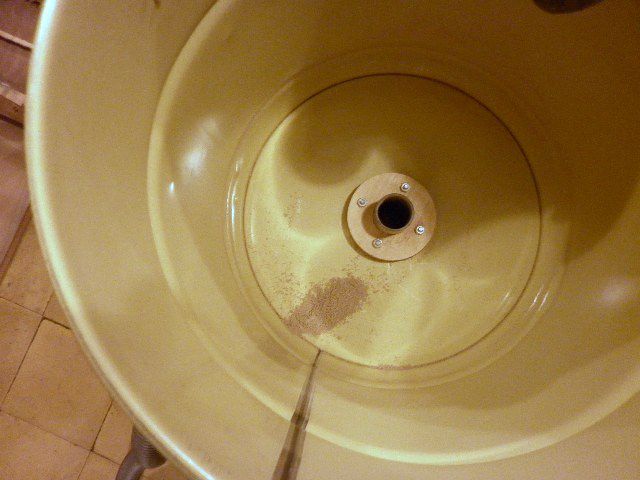

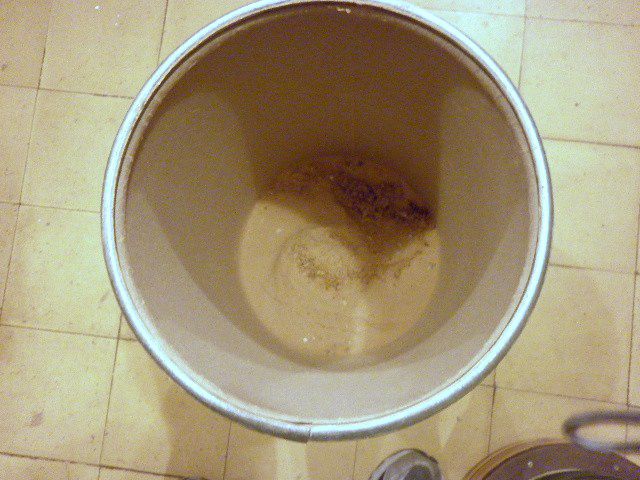

The pile of collected dust/shavings in the drum

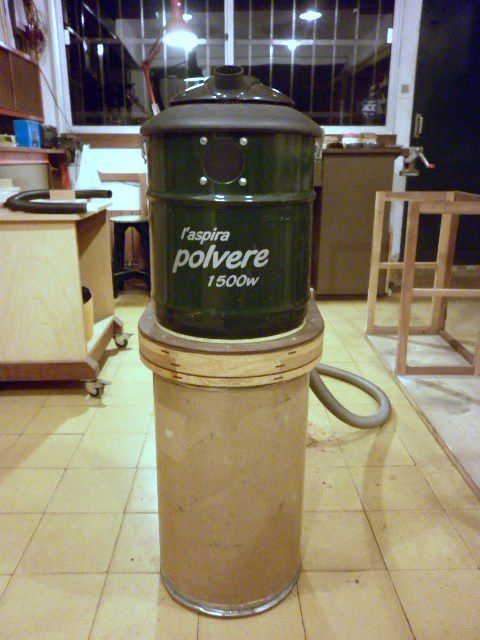

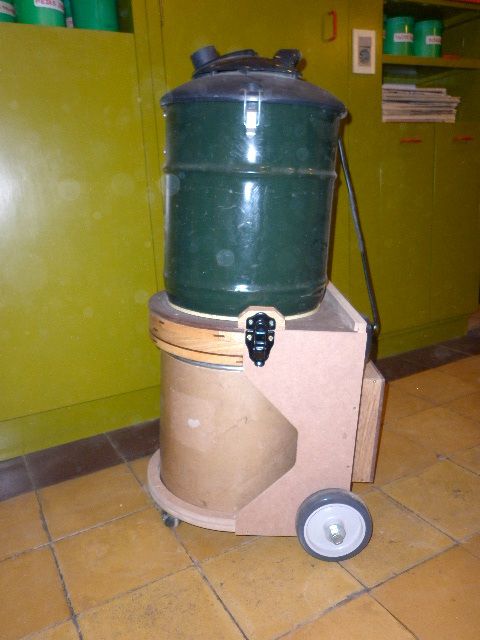

The final product, still lacking a coat of paint

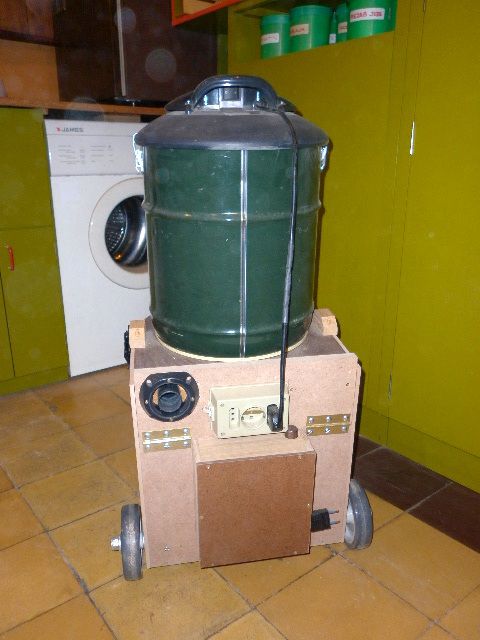

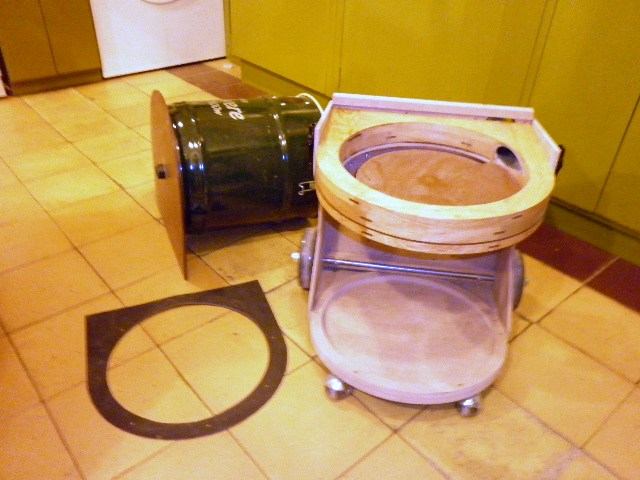

View from the back. That's the hose inlet at the upper left. The motor and cover are removable after unplugging the power cable. I added a cable reel which the original vac lacked.

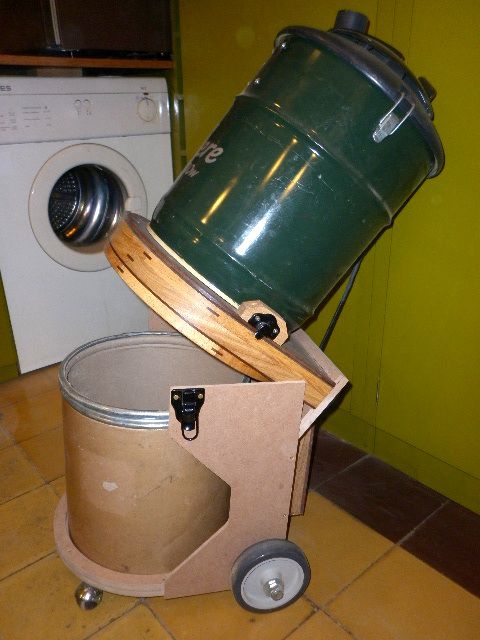

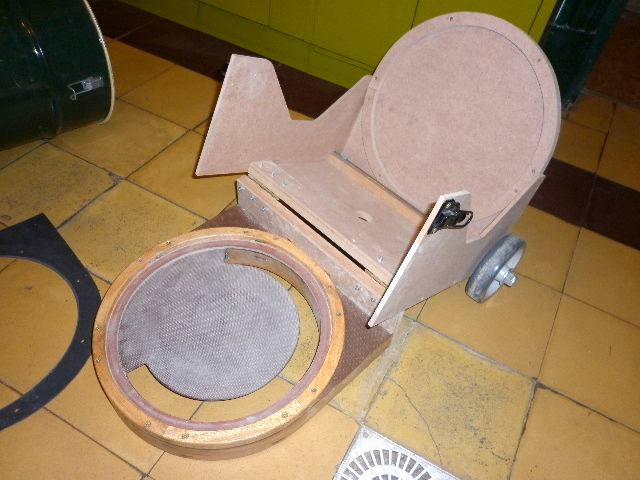

Shows how the top unit tilts away to allow bucket removal Initially, I planned to shorten the shop vac container height but I have to leave some space (30mm) between the filter and the baffle outlet. All in all, I can only shave some 60mm from the container's bottom. Meanwhile, I lose rigidity, a new bottom must be fashioned and the all-up weight will increase. These drawbacks hardly offset the advantage of a lower height. An alternative would be using a smaller (lower) filter cartridge but I'd hate to lose filtering area.
